LM1875 20W音频功率放大器 LM1875 20W Audio Power Amplifier
Can you not hear your audio? Implement this class D amplifier from Texas Instruments. It has a maximum load resistance of 8 Ohm. It has a single input signal and a single output signal. Its typical dual supply voltage is ±9|±12|±15|±18|±24|±28 V, with a minimum of ±8 V and maximum of ±30 V. It has a 1-channel mono output. This audio amplifier has a maximum operating temperature of 150 °C. Its typical PSRR is 95 dB. This device uses one or two power supplies.
供电电流 100 mA
增益频宽积 5.5 MHz
输出功率 25 W
输入补偿电压 15 mV
工作温度Max 70 ℃
工作温度Min 0 ℃
增益带宽 5.5 MHz
电源电压Max 60 V
电源电压Min 16 V
安装方式 Through Hole
引脚数 5

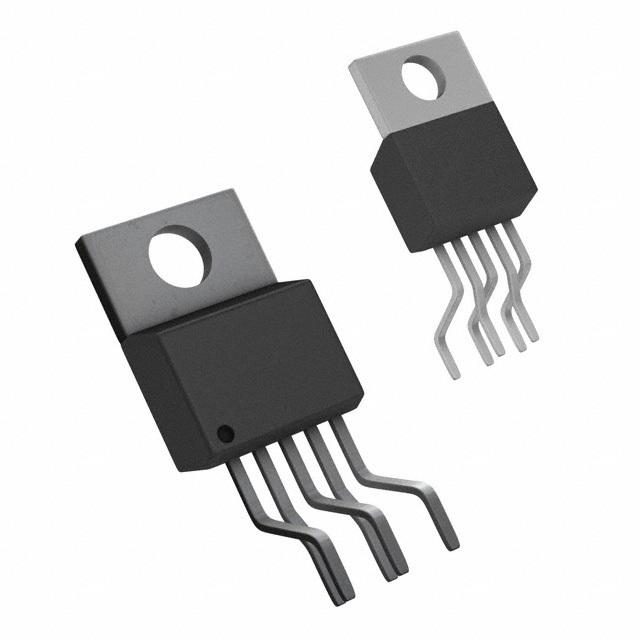

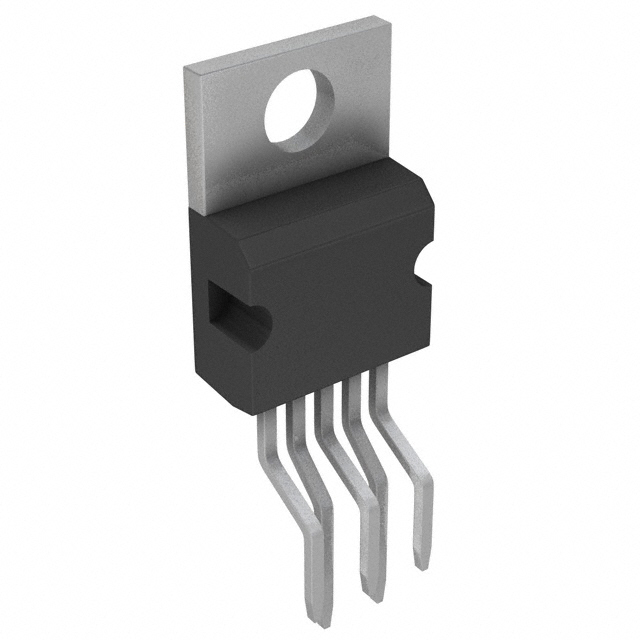

封装 TO-220-5
长度 10.16 mm
宽度 4.7 mm
高度 8.89 mm
封装 TO-220-5
工作温度 0℃ ~ 70℃ TA
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
