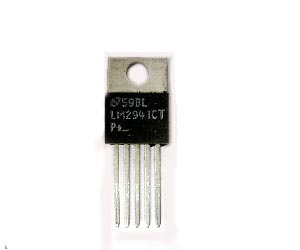

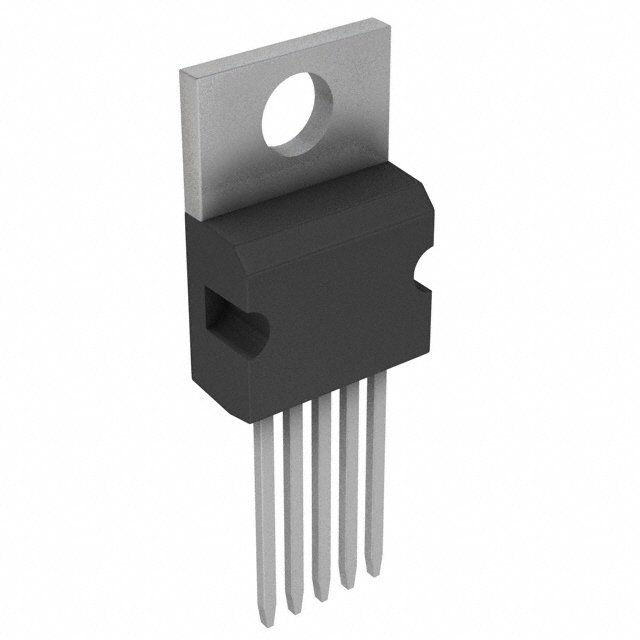

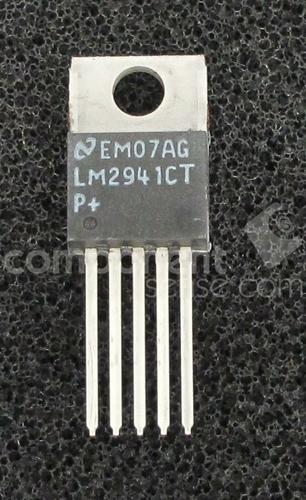

TEXAS INSTRUMENTS LM2941CT 电压稳压器, LDO, 可调, -15V至26V输入, 500mV压差, 5V至20V/1A输出, TO-220-5
The is a Positive Voltage Regulator features the ability to source 1A of output current with a typical dropout voltage of 0.5V and a maximum of 1V over the entire temperature range. Furthermore, a quiescent current reduction circuit has been included which reduces the ground pin current when the differential between the input voltage and the output voltage exceeds approximately 3V. The quiescent current with 1A of output current and an input-output differential of 5V is therefore only 30mA. Higher quiescent currents only exist when the regulator is in the dropout mode VIN -VOUT
Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
电源电压DC 26.0V max
额定电流 1.00 A
输出接口数 1
输出电压 5V ~ 20V
输出电流 1 A
供电电流 10mA ~ 15mA
针脚数 5
静态电流 15 mA
跌落电压 500 mV
调节输出数 1
输入电压Max 26 V
输入电压Min 15 V
输出电压Max 20 V
输出电压Min 5 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min 0 ℃
输入电压 6V ~ 26V
安装方式 Through Hole
引脚数 5
封装 TO-220-5
封装 TO-220-5
工作温度 0℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
制造应用 工业, 车用
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM2941CT TI 德州仪器 | 当前型号 | 当前型号 |
LM2941T 德州仪器 | 完全替代 | LM2941CT和LM2941T的区别 |
LM2941CT/LF03 德州仪器 | 完全替代 | LM2941CT和LM2941CT/LF03的区别 |
LM2941T/NOPB 德州仪器 | 类似代替 | LM2941CT和LM2941T/NOPB的区别 |
