LM3677TL-1.2/NOPB

用于超低电压电路的 3MHz、600mA 微型降压直流/直流转换器 5-DSBGA

The LM3677 step-down DC-DC converter is optimized for powering ultra-low voltage circuits from a single Li-Ion cell battery and input voltage rails from 2.7V to 5.5V. It provides up to 600 mA load current over the entire input voltage range. The LM3677 is configured to different fixed voltage output options as well as an adjustable output voltage version range from 1.2V to 3.3V.

The device offers superior features and performance for mobile phones and similar portable applications with complex power management systems. Automatic intelligent switching between PWM low-noise and PFM low-current mode offers improved system control. During PWM mode operation, the device operates at a fixed frequency of 3 MHz typ. PWM mode drives loads from ~ 80 mA to 600 mA max. Hysteretic PFM mode extends the battery life by reducing the quiescent current to 16 µA typ. during light load and standby operation. Internal synchronous rectification provides high efficiency. In shutdown mode Enable pin pulled down, the device turns off and reduces battery consumption to 0.01 µA typ..

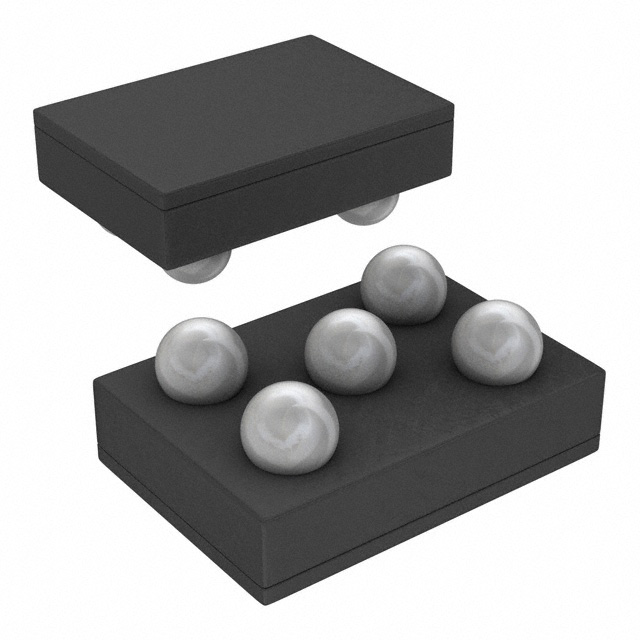

The LM3677 is available in a lead-free NOPB 5-bump DSBGA package and 6-pin USON package. A switching frequency of 3 MHz typ. allows use of tiny surface-mount components. Only three external surface-mount components, an inductor and two ceramic capacitors, are required.
