开关控制器 A 926-LM3489QMM/NOPB
Need to change voltage levels in a DC circuit? Use the buck DC voltage controller from Texas Instruments. Its output produces a current of 4 A. With an output that has a voltage of 1.239 to 35 V, this is power management at its best. This DC voltage controller has single output. This DC voltage controller has an input voltage of 4.5 to 35 V. This part offers a switching frequency of 1000Min kHz in order to work properly. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This DC voltage controller has a minimum operating temperature of -40 °C and a maximum of 125 °C.
输出接口数 1
输出电压 1.239V ~ 35V
输出电流 4 A
耗散功率 417 mW
静态电流 280 µA
调节输出数 1
开关频率 1MHz MAX
拓扑结构 Buck
输入电压Max 35 V
输入电压Min 4.5 V
最大占空比 1
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 417 mW
输入电压 4.5V ~ 35V
引脚数 8

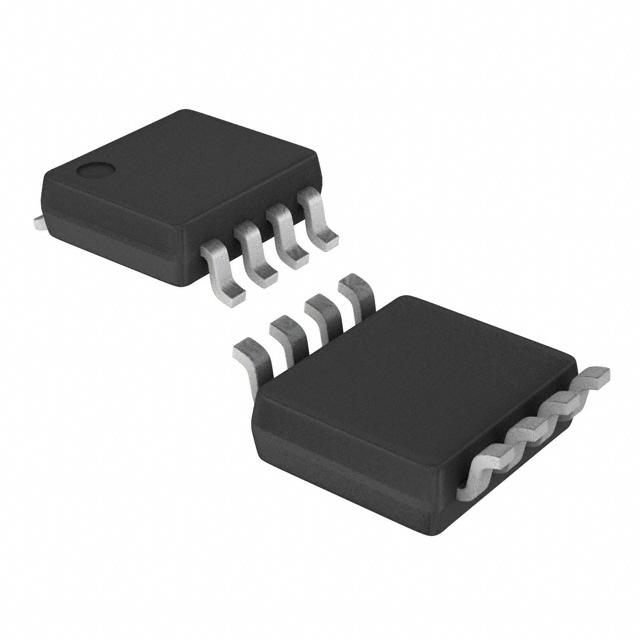

封装 VSSOP-8
封装 VSSOP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LM3489QMMX/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
