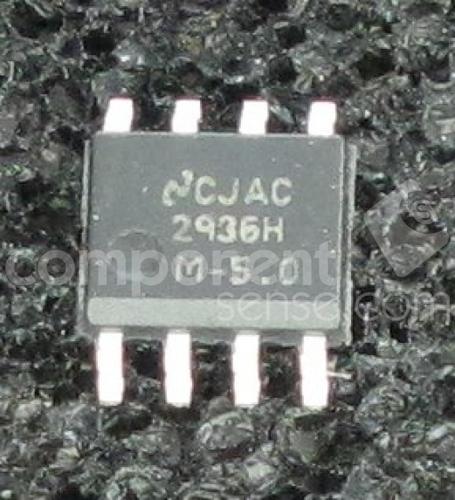

LM2936HVMAX-5.0/NOPB 编带
The LM2936 ultra-low quiescent current regulator features low dropout voltage and low current in the standby mode. With less than 15-μA quiescent current at a 100-μA load, the LM2936 is ideally suited for automotive and other battery operated systems. The LM2936 retains all of the features that are common to low dropout regulators including a low dropout PNP pass device, short circuit protection, reverse battery protection, and thermal shutdown. The LM2936 has a 40-V maximum operating voltage limit, a −40°C to 125°C operating temperature range, and ±3% output voltage tolerance over the entire output current, input voltage, and temperature range. The LM2936 is available in a TO-92 through-hole package, as well as SOIC-8, VSSOP, SOT–223, and TO-252 surface mount packages.
输出接口数 1
输出电压 5 V
输出电流 50 mA
供电电流 9µA ~ 2.5mA
针脚数 8
静态电流 9.00 µA
跌落电压 0.2V @50mA
调节输出数 1
输入电压Max 60 V
输入电压Min 4 V
输出电压Min 5 V
输出电流Max 0.05 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 ≤60 V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
封装 SOIC-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM2936HVMAX-5.0/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM2936M-5.0/NOPB 德州仪器 | 类似代替 | LM2936HVMAX-5.0/NOPB和LM2936M-5.0/NOPB的区别 |
LM2936MX-5.0/NOPB 德州仪器 | 类似代替 | LM2936HVMAX-5.0/NOPB和LM2936MX-5.0/NOPB的区别 |
LM2936HVBMA-5.0/NOPB 德州仪器 | 类似代替 | LM2936HVMAX-5.0/NOPB和LM2936HVBMA-5.0/NOPB的区别 |
