1A,5V输出,降压型DC/DC变换器
The LM2575 series of Buck Switching Regulators are monolithic integrated circuits ideally suited for easy and convenient design of a step-down switching regulator buck converter. All circuits of this series are capable of driving a 1.0 A loadwith excellent line and load regulation. These devices are available in fixedoutput voltages of 3.3 V, 5.0 V, 12 V, 15 V, and an adjustable output version. This Buck Switching Regulator is designed to minimize the number of external components to simplify the power supply design. Standard series of inductors optimized for use with the LM2575 are offered by several different inductor manufacturers. Since the LM2575 converter is a switch-mode power supply, its efficiency is significantly higher in comparison with popular three-terminal linear regulators, especially with higher input voltages. In many cases, the power dissipated by the LM2575 regulator is so low, that no heatsink is required or its size could be reduced dramatically. The LM2575 features include a guaranteed 4% tolerance on output voltage within specified input voltages and output load conditions, and +/-10% on the oscillator frequency +/-2% over 0C to 125C. External shutdown is included, featuring 80 uA typical standby current. The output switch includes cycle-by-cycle current limiting, as well as thermal shutdown for full protection under fault conditions.
Features
---
|
Maximum Over Line and Load Conditions
无卤素状态 Halogen Free
输出接口数 1
输出电压 5 V
输出电流 1 A
针脚数 5
静态电流 9 mA
开关频率 52 kHz
拓扑结构 Step-Down
输入电压Max 40 V
输入电压Min 4.75 V
输出电压Min 5 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 4.75V ~ 40V
安装方式 Through Hole
引脚数 5

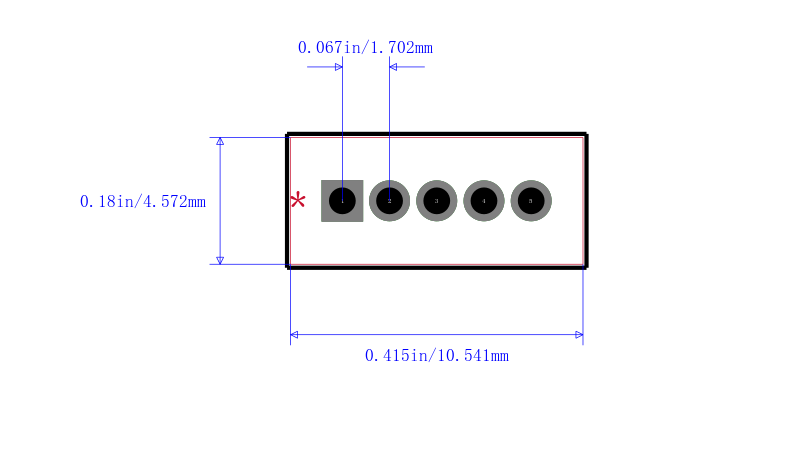

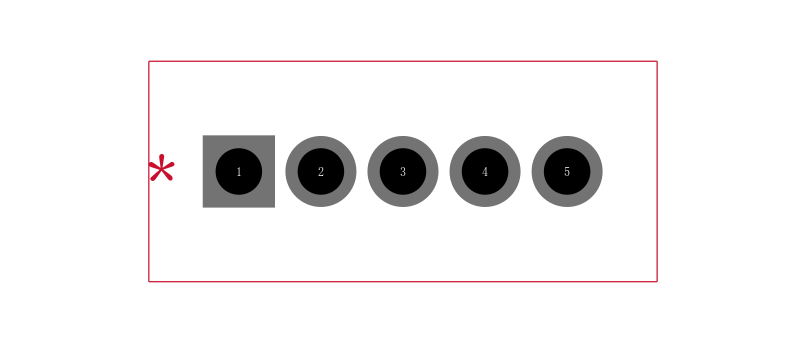

封装 TO-220-5
封装 TO-220-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
制造应用 Simple and High-Efficiency Step-Down Buck Regulators, Negative Step-Up Converters, Positive to Negative Converters Buck-Boost, Power Supply for Battery Chargers, Efficient Pre-Regulator for Linear Regulators, On-Card Switching Regulators
RoHS标准
含铅标准 Lead Free
ECCN代码 EAR99
