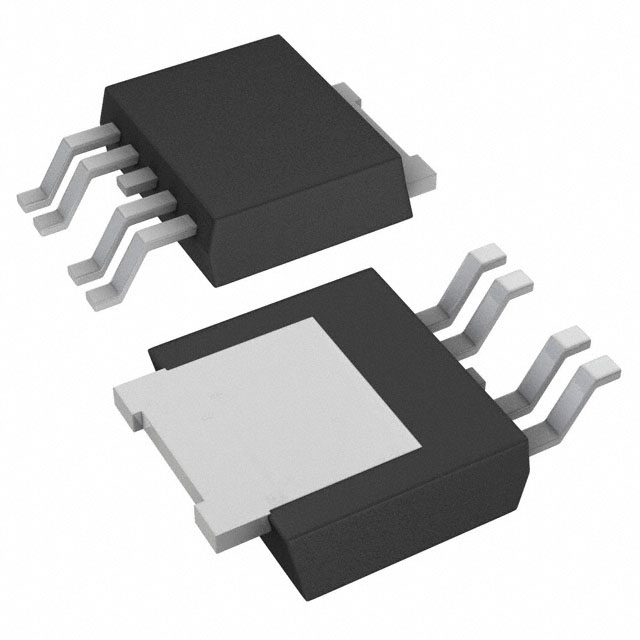

LD39150 系列 1.5 A 1.22 至 5 V 可调输出 LDO BiCMOS 稳压器- PPAK-5
PMIC - 稳压器 - 线性 正 可调式 1 输出 1.5A PPAK
得捷:
IC REG LINEAR POS ADJ 1.5A PPAK
艾睿:
Having trouble maintaining a steady voltage? This LDO LD39150PT-R linear regulator from STMicroelectronics will give you control over the voltage levels of your circuit. Its typical dropout voltage at current is 0.04@300mA|0.2@1500mA V. It has an overall accuracy of ±1.5 %. This voltage regulation device&s;s single output can produce a current up to 1.5 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.5 V that does not exceed 6 V. With an adjustable output that has a voltage of 1.22 to 5 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 0.06%/ATyp and line regulation of 0.04%Typ. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. The maximum dropout voltage is 0.08@300mA|0.4@1500mA V.
富昌:
LD39150 Series 3.3 V 1.5 A Ultra Low Drop BiCMOS Voltage Regulator - PPAK-5
Verical:
LDO Regulator Pos 1.22V to 5V 1.5A 5-Pin4+Tab PPAK T/R
DeviceMart:
IC REG LDO ADJ 1.5A PPAK
Win Source:
Linear Voltage Regulator IC Positive Adjustable 1 Output 1.22 V ~ 5 V 1.5A PPAK
输出接口数 1
输出电压 1.22V ~ 5V
输出电流 1.5 A
供电电流 2.5 mA
针脚数 5
静态电流 1 mA
跌落电压 0.04V @300mA,0.2V @1500mA
输入电压Max 6 V
输入电压Min 2.5 V
输出电压Max 5 V
输出电压Min 1.22 V
输出电流Max 1.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1.5 %
输入电压 2.5V ~ 6V
安装方式 Surface Mount
引脚数 5
封装 TO-252-5
长度 6.6 mm
宽度 6.2 mm
高度 2.4 mm
封装 TO-252-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LD39150PT-R ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
LD39300PT-R 意法半导体 | 类似代替 | LD39150PT-R和LD39300PT-R的区别 |
LD39080PT-R 意法半导体 | 类似代替 | LD39150PT-R和LD39080PT-R的区别 |
