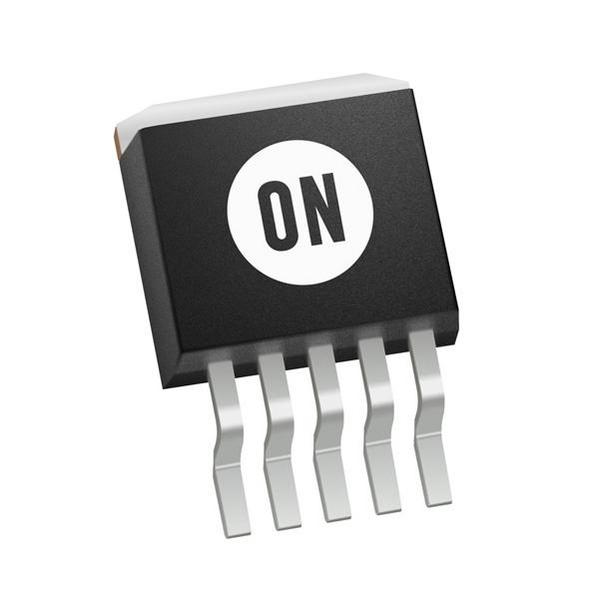

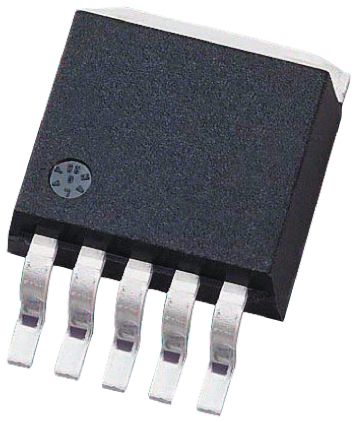

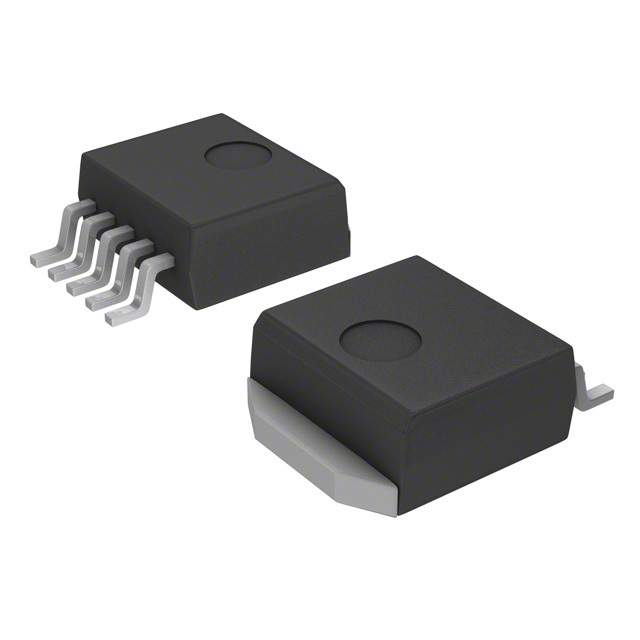

ON SEMICONDUCTOR LM2576D2T-ADJR4G DC-DC Switching Buck Step Down Regulator, Adj., 7V-40Vin, 1.23V-37V/3A out, 52 kHz, TO-263-5 新
开关稳压器,降压直流 - 直流转换器,
电流模式和电压模式直流-直流转换器,适用于降压(步降)、升压(步升)和回扫应用。
### 直流-直流控制器、转换器和稳压器,ON Semiconductor
欧时:
### 开关稳压器,降压直流 - 直流转换器,ON Semiconductor### 直流-直流控制器、转换器和稳压器,ON Semiconductor
得捷:
IC REG MULT CONFG ADJ 3A D2PAK-5
立创商城:
降压型 Vin=7V~40V Vout=1.23V~37V 3A
贸泽:
Switching Voltage Regulators 3A 1.23-37V ADJ Buck PWM
e络盟:
DC-DC Switching Buck Step Down Regulator, Adj., 7V-40Vin, 1.23V-37V/3A out, 52 kHz, TO-263-5
艾睿:
Adjust the voltage level of your devices with this inverting and step down LM2576D2T-ADJR4G DC to DC converter from ON Semiconductor. This converter&s;s single output can produce a current up to 3 A. This will operate at a minimum voltage of 7 V and a maximum voltage of 40 V, making it easy to control the power in your circuit. With an adjustable output that has a voltage of 1.23 to 37 V, this is power management at its best. This converter is 77typ % efficient. Its switching regulator has a frequency of 52Typ kHz. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This converter has an operating temperature range of -40 °C to 125 °C.
Allied Electronics:
LM2576D2T-ADJR4G Switching Regulator 3AAdjustable; 1.23 to 37 V; 5-Pin D2PAK
安富利:
Conv DC-DC Single Inv/Step Down 7V to 40V 6-Pin5+Tab D2PAK T/R
Verical:
Conv DC-DC 7V to 40V Inv/Step Down Single-Out 1.23V to 37V 3A 6-Pin5+Tab D2PAK T/R
Newark:
# ON SEMICONDUCTOR LM2576D2T-ADJR4G DC/DC CONV, BUCK, 3A, 52KHZ, TO-263-5
力源芯城:
3A, 可调输出,降压型DC/DC变换器
DeviceMart:
IC REG BUCK ADJ 3A D2PAK-5
Win Source:
Buck, Boost, Buck-Boost Switching Regulator IC Positive or Negative Adjustable 1.23V 1 Output 3A TO-263-6, D2Pak 5 Leads + Tab, TO-263BA
输出接口数 1
输出电压 1.23V ~ 37V
输出电流 3 A
针脚数 5
静态电流 9 mA
开关频率 52 kHz
输入电压Max 40 V
输入电压Min 7 V
输出电压Max 37 V
输出电压Min 1.23 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 3V ~ 40V
安装方式 Surface Mount
引脚数 5
封装 TO-263-5
长度 10.24 mm
宽度 4.572 mm
高度 9.347 mm
封装 TO-263-5
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power Supply for Battery Chargers, On-Card Switching Regulators, Efficient Pre-Regulator for Linear Regulators, Positive to Negative Converter Buck-Boost, Simple High-Efficiency Step-Down Buck Regulator, Negative Step-Up Converters
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM2576D2T-ADJR4G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
LM2576D2T-ADJG 安森美 | 完全替代 | LM2576D2T-ADJR4G和LM2576D2T-ADJG的区别 |
LM2576SX-ADJ/NOPB 德州仪器 | 功能相似 | LM2576D2T-ADJR4G和LM2576SX-ADJ/NOPB的区别 |
LM2576HVSX-ADJ/NOPB 德州仪器 | 功能相似 | LM2576D2T-ADJR4G和LM2576HVSX-ADJ/NOPB的区别 |
