三端可调负稳压器 3-Terminal Adjustable Negative Regulators
Linear Voltage Regulator IC 1 Output 1.5A SOT-223-4
得捷:
IC REG LIN NEG ADJ 1.5A SOT223-4
立创商城:
负 Vin=40V Vout=1.2V 1.5A 60dB@120Hz
贸泽:
Linear Voltage Regulators R 926-LM337IMPX/NOPB
艾睿:
Standard Regulator Neg -1.2V to -37V 1A 4-Pin3+Tab SOT-223 T/R
Chip1Stop:
LDO Regulator Neg -1.2V to -37V 1A 4-Pin3+Tab SOT-223 T/R
Verical:
Standard Regulator Neg -1.2V to -37V 1A 4-Pin3+Tab SOT-223 T/R
Win Source:
3-Terminal Adjustable Negative Regulators
输出接口数 1
输入电压DC -40.0 V max
输出电流 1 A
耗散功率 2 W
静态电流 3.00 mA
输出电容类型 Ceramic
跌落电压 2.40 V
调节输出数 1
输入电压Max 50 V
输入电压Min 4.2 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min 40 ℃
耗散功率Max 2000 mW
安装方式 Surface Mount
引脚数 4

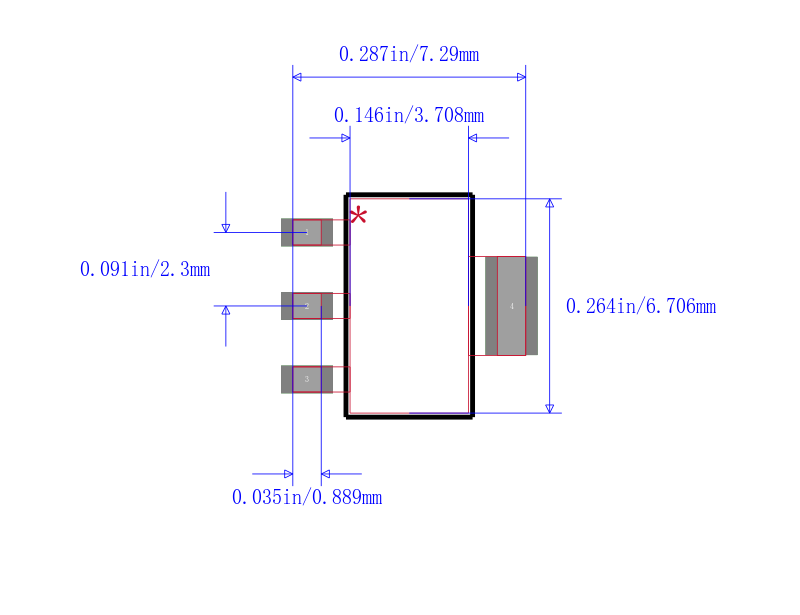

封装 TO-261-4
封装 TO-261-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 Non-Compliant
含铅标准 Contains Lead
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM337IMPX TI 德州仪器 | 当前型号 | 当前型号 |
LM337IMP/NOPB 德州仪器 | 类似代替 | LM337IMPX和LM337IMP/NOPB的区别 |
LM337IMPX/NOPB 德州仪器 | 类似代替 | LM337IMPX和LM337IMPX/NOPB的区别 |
LM337IMP 德州仪器 | 类似代替 | LM337IMPX和LM337IMP的区别 |
