TEXAS INSTRUMENTS LM5114BMF/NOPB 驱动器芯片, MOSFET, 低压侧, 4V-12.6V电源, 7.6A输出, 12ns延迟, SOT-23-6
The is a single 7.6A peak current low-side Gate Driver designed to drive low-side MOSFETs in boost type configurations or to drive secondary synchronous MOSFETs in isolated topologies. With strong sink current capability, the LM5114 can drive multiple FETs in parallel and also has the features necessary to drive low-side enhancement mode Gallium Nitride GaN FETs. The driver provides inverting and non-inverting inputs to satisfy requirements for inverting and non-inverting gate drive in a single device type. The inputs of the driver are TTL/CMOS Logic compatible and withstand the input voltages up to 14V regardless of the VDD voltage. The Driver has split gate outputs, providing flexibility to adjust the turn-on and turn-off strength independently. This gate driver has fast switching speed and minimized propagation delays, facilitating high-frequency operation.
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
电源电压DC 4.00V min
上升/下降时间 82ns, 12.5ns
输出接口数 2

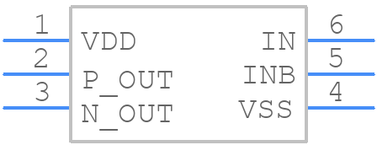

针脚数 6
上升时间 82 ns
下降时间 12.5 ns
下降时间Max 12.5 ns
上升时间Max 82 ns
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4V ~ 12.6V
电源电压Max 12.6 V
电源电压Min 4 V
安装方式 Surface Mount
引脚数 6
封装 SOT-23-6
封装 SOT-23-6
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 电机驱动与控制, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM5114BMF/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM5114BSD/NOPB 德州仪器 | 完全替代 | LM5114BMF/NOPB和LM5114BSD/NOPB的区别 |
LM5114BMFX/S7003094 德州仪器 | 完全替代 | LM5114BMF/NOPB和LM5114BMFX/S7003094的区别 |
LM5114BMFX/NOPB 德州仪器 | 完全替代 | LM5114BMF/NOPB和LM5114BMFX/NOPB的区别 |
