精密微功耗并联型电压基准 PRECISION MICROPOWER SHUNT VOLTAGE REFERENCE
Even in the event of large power supply variations, this voltage reference power management device from Texas Instruments can produce and maintain a precise DC voltage. By working with a maximum input voltage of 15 V, this is the best way to control the power in your circuit. With an output that has a voltage of 1.225 to 10 V, this is power management at its best. It has an initial accuracy of 0.2%. This voltage reference circuit supports shunt topology. Maintain a constant voltage level with a load regulation of 4mV. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This voltage reference circuit has a minimum operating temperature of -40 °C and a maximum of 85 °C. It runs with a maximum temperature coefficient of 20ppm/°CTyp.
容差 ±0.2 %
输入电压DC 10.0 V
输出电压 1.225V ~ 10V
输出电流 12 mA
通道数 1
输入电压Max 15 V
输出电压Max 10 V
输出电压Min 1.233 V
输出电流Max 25 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±0.2 %
输入电压 15 V
安装方式 Surface Mount
引脚数 3

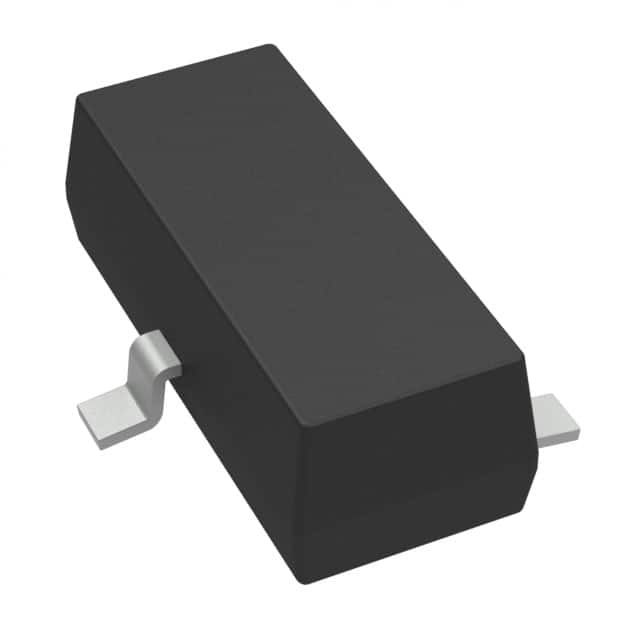

封装 SOT-23-3
封装 SOT-23-3
工作温度 -40℃ ~ 85℃ TA
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM4041BIDBZT TI 德州仪器 | 当前型号 | 当前型号 |
LM4041BIDBZR 德州仪器 | 完全替代 | LM4041BIDBZT和LM4041BIDBZR的区别 |
LM4041CIDBZR 德州仪器 | 完全替代 | LM4041BIDBZT和LM4041CIDBZR的区别 |
LM4041CIDBZT 德州仪器 | 完全替代 | LM4041BIDBZT和LM4041CIDBZT的区别 |
