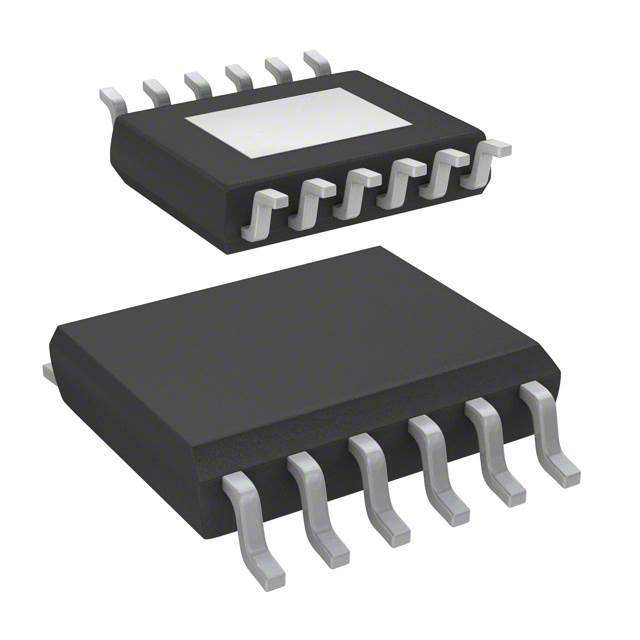

LDO Regulator Pos 5V 0.5A 12Pin PowerSSO T/R
PMIC - 稳压器 - 线性 正 固定 1 输出 500mA PowerSSO-12
得捷:
IC REG LIN 5V 500MA POWERSSO-12
贸泽:
LDO Voltage Regulators 5V 150mA LW DROP VLT REGULATOR
艾睿:
Stable power is ideal for better processing this LDO L4995RJTR linear regulator developed by STMicroelectronics will help do so. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.27@400mA V. This voltage regulation device&s;s single output can produce a current up to 0.5 A. With a fixed output that has a voltage of 5 V, this is power management at its best. Using a load regulation of 25mV and line regulation of 25mV is needed for a programmable DC power supply. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. The maximum dropout voltage is 0.5@400mA V. This voltage regulation device has an operating temperature range of -40 °C to 150 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 5V 0.5A 12-Pin PowerSSO T/R
DeviceMart:
IC REG LDO 5V .5A POWERSSO-12
输出接口数 1
输出电压 5 V
输出电流 500 mA
跌落电压 0.27V @400mA
输出电流Max 0.5 A
工作温度Max 150 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 5.6V ~ 31V
安装方式 Surface Mount
引脚数 12
封装 PowerSSO-EP-12
长度 5 mm
宽度 4 mm
高度 1.62 mm
封装 PowerSSO-EP-12
工作温度 -40℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
L4995RJTR ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
L4995RJ 意法半导体 | 完全替代 | L4995RJTR和L4995RJ的区别 |
