LB1948MC-BH

LB1948MC 系列 16 V 0.8 A 870 mW 双通道 正向/反向 电机驱动器 - MFP10

The LB1948MC is a two-channel low saturation voltage forward/reverse motor driver IC. It is optimal for motor drive in 12V system products and can drive either two DC motors, one DC motor using parallel connection, or a two-phase bipolar stepping motor with 1-2 phase excitation mode drive.

Features |   | Benefits

---|---|---

 | |  | |  |

.

20 V max operating voltage

|   |

.

Good safety margin for driving 12V motors

.

Zero current drawn in standby mode

|   |

.

Saving energy

.

Braking function

|   |

.

Safety design

.

Built-in spark killer diode

|   |

.

Spark killer

.

Built-in thermal shutdown circuit

|   |

.

Thermal protection

.

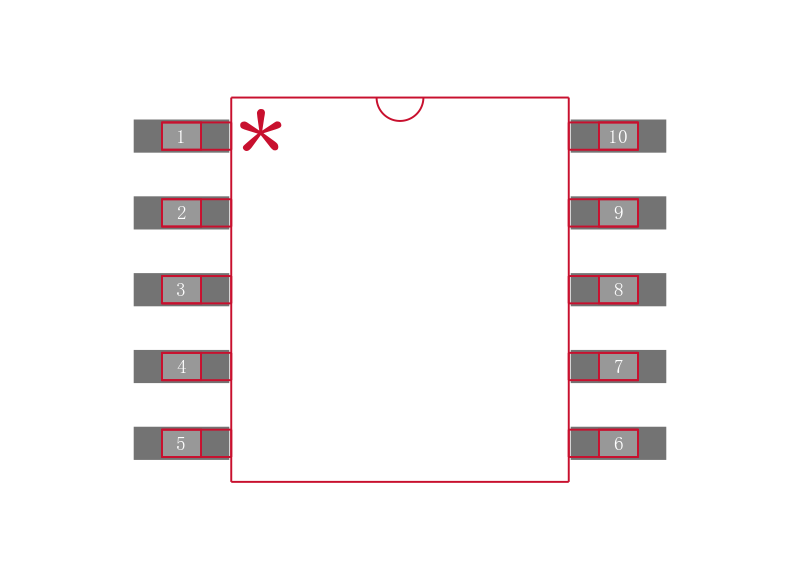

Miniature package: MFP-10SK 6.2mm 5.0mm

|   |

.

Small mounting space

.

Low saturation voltage: VOsat = 0.5V typical at IO = 400mA

|   |

.

Supports parallel connection: IO max = 1.6A, VOsat = 0.6V typical at IO = 800mA

|   |
