汽车类 500mA、10V、低压降稳压器 6-WSON -40 to 125
PMIC - 稳压器 - 线性 正 固定 1 输出 500mA 6-WSON(3x3)
立创商城:
LP38691QSDX-3.3/NOPB
德州仪器TI:
Automotive 500-mA, 10-V, low-dropout voltage regulator
得捷:
LP38691-Q1 - 500MA LOW DROPOUT C
贸泽:
LDO Voltage Regulators 500mA Low Dropout CMOS Linear Reg
艾睿:
This LDO LP38691QSDX-3.3/NOPB linear regulator from Texas Instruments is used to manipulate the voltage level of your circuit. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.065@100mA|0.33@500mA V. This voltage regulation device&s;s single output can produce a current up to 0.5 A. The best way to provide power to your application is by using this, which needs a voltage of at least 2.7 V and no higher than 10 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 1.8%/ATyp and line regulation of 0.03%/VTyp. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. The maximum dropout voltage is 0.11@100mA|0.55@500mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 3.3V 0.5A 6-Pin LLP EP T/R
Verical:
LDO Regulator Pos 3.3V 0.5A Automotive 6-Pin WSON EP T/R
输出接口数 1
输出电压 3.3 V
输出电流 500 mA
供电电流 55µA ~ 100µA
静态电流 0.055 mA
输出电容类型 Ceramic
跌落电压 0.33V @500mA,0.065V @100mA
调节输出数 1
输入电压Max 10 V
输入电压Min 2.7 V
输出电压Min 3.3 V
输出电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 10V ~ 2.7V
安装方式 Surface Mount
引脚数 6

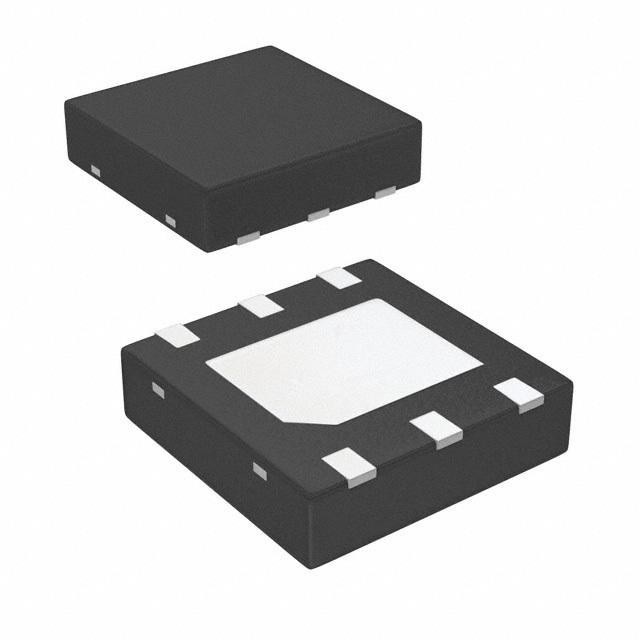

封装 WSON-6
封装 WSON-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP38691QSDX-3.3/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP38691SD-3.3/NOPB 德州仪器 | 类似代替 | LP38691QSDX-3.3/NOPB和LP38691SD-3.3/NOPB的区别 |
LP38691QSD-3.3/NOPB 德州仪器 | 类似代替 | LP38691QSDX-3.3/NOPB和LP38691QSD-3.3/NOPB的区别 |
LP38691SDX-3.3/NOPB 德州仪器 | 类似代替 | LP38691QSDX-3.3/NOPB和LP38691SDX-3.3/NOPB的区别 |
