汽车类 500mA、10V、低压降稳压器 6-WSON -40 to 125
The LP3869x low-dropout CMOS linear regulators provide tight output tolerance 2% typical, extremely low dropout voltage 250 mV at 500-mA load current, VOUT = 5 V, and excellent AC performance using ultralow equivalent series resistance ESR ceramic output capacitors.
The low thermal resistance of the WSON, SOT-223, and TO-252 packages allow use of the full operating current even in high ambient temperature environments.
The use of a PMOS power transistor means that no DC base-drive current is required to bias it, thus allowing ground pin current to remain below 100 µA regardless of load current, input voltage, or operating temperature.
输出接口数 1
输出电压 1.8 V
输出电流 500 mA
供电电流 55µA ~ 100µA
静态电流 0.055 mA
输出电容类型 Ceramic
跌落电压 250 kV
调节输出数 1
输入电压Max 10 V
输入电压Min 2.7 V
输出电压Min 1.8 V
输出电流Max 0.25 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 2.7V ~ 10V
安装方式 Surface Mount
引脚数 6

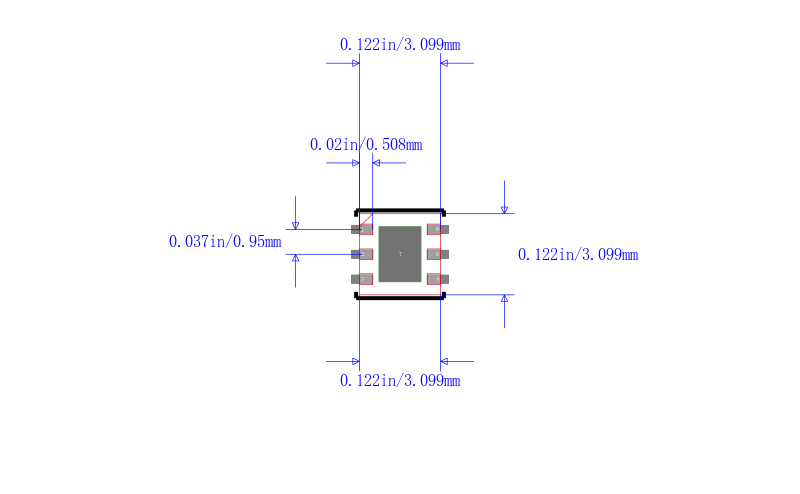

封装 WDFN-6
封装 WDFN-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP38691QSDX-1.8/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP8345CLD-1.8/NOPB 德州仪器 | 完全替代 | LP38691QSDX-1.8/NOPB和LP8345CLD-1.8/NOPB的区别 |
LP8345CLDX-1.8/NOPB 德州仪器 | 完全替代 | LP38691QSDX-1.8/NOPB和LP8345CLDX-1.8/NOPB的区别 |
LP8345ILD-1.8/NOPB 德州仪器 | 完全替代 | LP38691QSDX-1.8/NOPB和LP8345ILD-1.8/NOPB的区别 |
