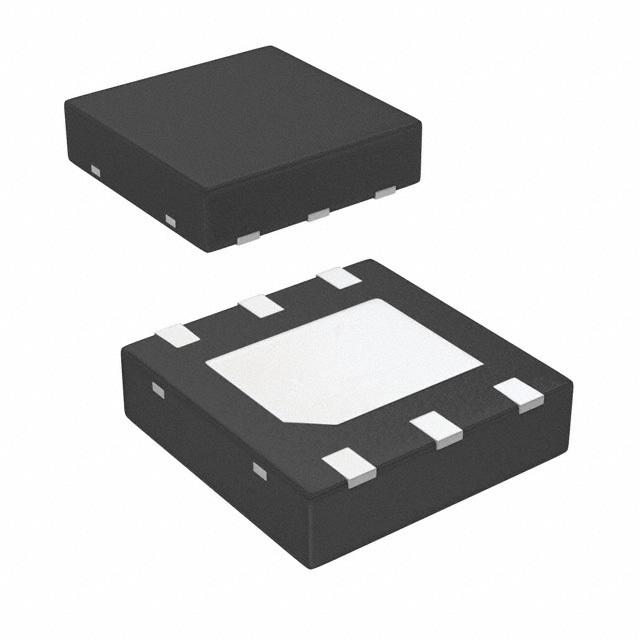

具有使能功能的汽车类 500mA、10V、低压降稳压器 6-WSON -40 to 125
The LP3869x low-dropout CMOS linear regulators provide tight output tolerance 2% typical, extremely low dropout voltage 250 mV at 500-mA load current, VOUT = 5 V, and excellent AC performance using ultralow equivalent series resistance ESR ceramic output capacitors.
The low thermal resistance of the WSON, SOT-223, and TO-252 packages allow use of the full operating current even in high ambient temperature environments.
The use of a PMOS power transistor means that no DC base-drive current is required to bias it, thus allowing ground pin current to remain below 100 µA regardless of load current, input voltage, or operating temperature.
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP38693QSD-1.8/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP38693SD-1.8/NOPB 德州仪器 | 完全替代 | LP38693QSD-1.8/NOPB和LP38693SD-1.8/NOPB的区别 |
LP38693QSDX-1.8/NOPB 德州仪器 | 完全替代 | LP38693QSD-1.8/NOPB和LP38693QSDX-1.8/NOPB的区别 |
LP38693SDX-1.8 德州仪器 | 完全替代 | LP38693QSD-1.8/NOPB和LP38693SDX-1.8的区别 |
