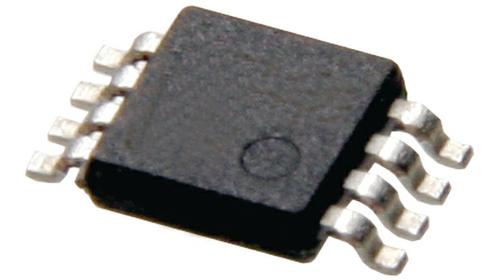

TEXAS INSTRUMENTS LM3477AMM/NOPB 芯片, N沟道控制器, 用于开关稳压器, MSOP-8
Ensure that all of the components within your circuit design receive the proper DC voltage by using Texas Instruments" buck DC voltage controller. With an output that has a voltage of 1.265Min V, this is power management at its best. Its output produces a current of 6 A. This DC voltage controller has single output. This DC voltage controller has an input voltage of 2.97 to 35 V. This part offers a switching frequency of 500Typ kHz in order to work properly. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This DC voltage controller has an operating temperature range of -40 °C to 125 °C.
电源电压DC 2.97V min
输出接口数 1
输出电压 1.265 V
输出电流 6 A
通道数 1
针脚数 8
静态电流 2.00 mA
调节输出数 1
开关频率 500 kHz
拓扑结构 Buck
占空比 93 %
输入电压Max 35 V
输入电压Min 2.97 V
最大占空比 93 %
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 2.97V ~ 35V
电源电压Max 35 V
电源电压Min 2.97 V
输入电压 2.97V ~ 35V
安装方式 Surface Mount
引脚数 8

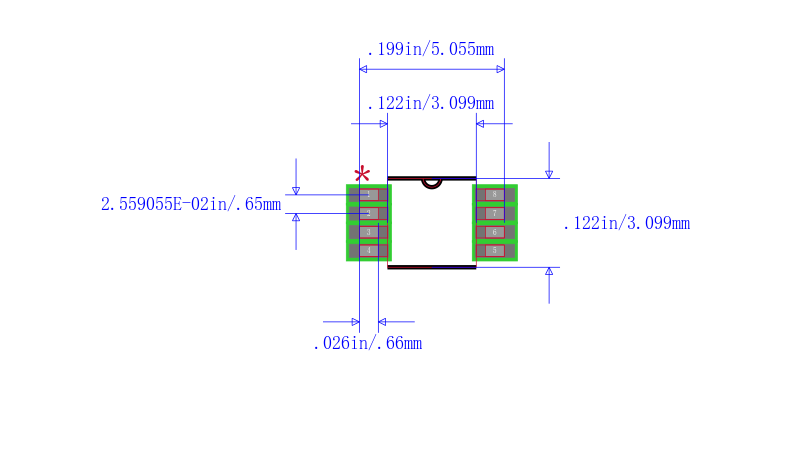

封装 MSOP-8
封装 MSOP-8
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LM3477AMM/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM3477AMMX/NOPB 德州仪器 | 完全替代 | LM3477AMM/NOPB和LM3477AMMX/NOPB的区别 |
LM3477AMM 德州仪器 | 类似代替 | LM3477AMM/NOPB和LM3477AMM的区别 |
LM3477AMMX 德州仪器 | 功能相似 | LM3477AMM/NOPB和LM3477AMMX的区别 |
