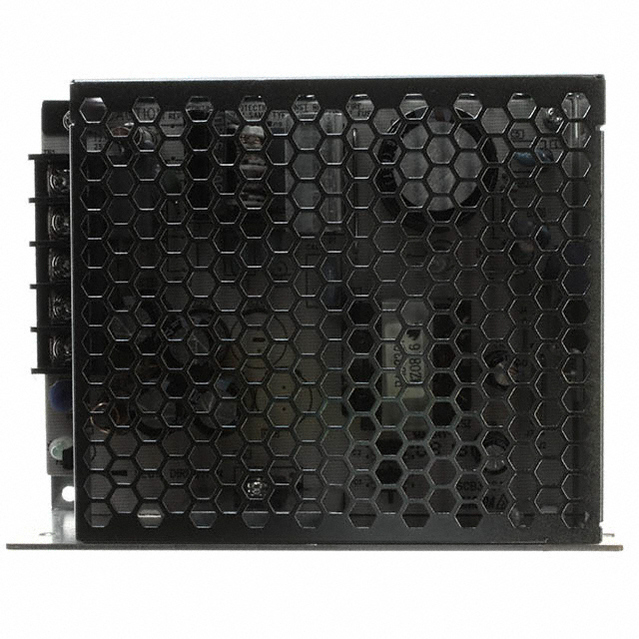

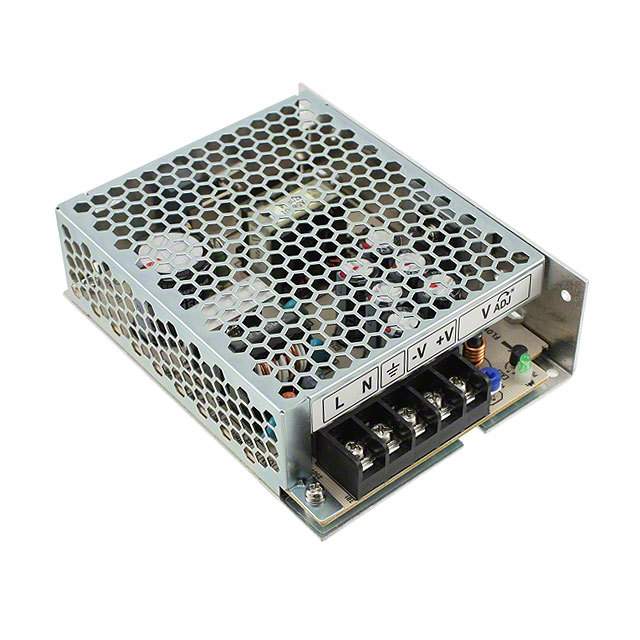

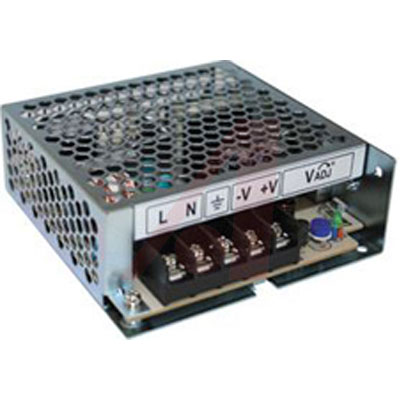

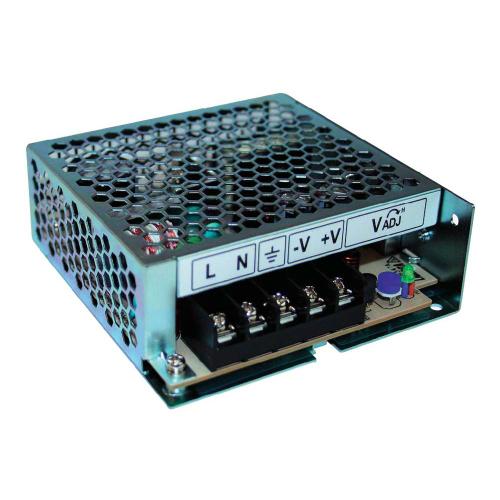

Power Supply; AC-DC; 48V; 1.6A; 86-264V In; Enclosed; Panel Mount; PFC; 77W; LS Series
* Very Low Cost
* Small Size
* 115 VAC or 230 VAC
* Withstands 300 VAC Surges 5 Seconds
* Three-Year Warranty
得捷:
AC/DC CONVERTER 48V 75W
艾睿:
AC/DC Power Supply Single-OUT 48V 1.6A 5-Pin
Allied Electronics:
Power Supply; AC-DC; 48V; 1.6A; 86-264V In; Enclosed; Panel Mount; PFC; 77W; LS Series
安富利:
AC/DC Power Supply Single-OUT 48V 1.6A 5-Pin
Chip1Stop:
AC/DC Power Supply Single-OUT 48V 1.6A 5-Pin
Verical:
AC/DC Power Supply Single-OUT 48V 1.6A 5-Pin
额定功率 75 W
输出接口数 1
输出电压 48 V
输出电流 1.6 A
输出功率 77 W
隔离电压 3 kV
输入电压DC Max 373 V
输入电压DC Min 125 V
输入电压AC Max 264 V
输入电压AC Min 88 V
额定电流Max 1.6 A
输出电流Max 1.6 A
输入电流Min 1.6 A
额定功率Max 75 W
工作温度Max 70 ℃
工作温度Min -25 ℃
输入电压 88V ~ 264V
安装方式 Chassis
引脚数 5
长度 129.54 mm
宽度 3.8 in
高度 38.1 mm
工作温度 -25℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
