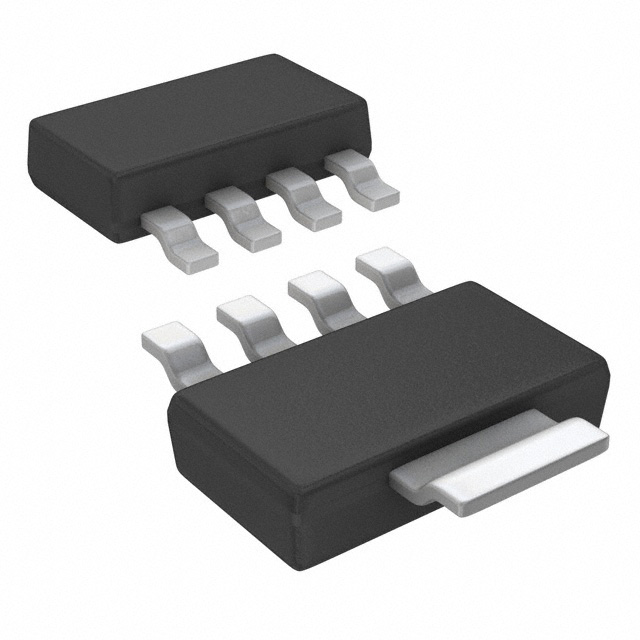

TEXAS INSTRUMENTS LP38692MP-3.3 固定电压稳压器, LDO, 2.7V至10V, 650mV压差, 3.3V输出, 1A输出, SOT-223-5
PMIC - 稳压器 - 线性 正 固定 1 输出 1A SOT-223-5
得捷:
LP38692 1A LOW DROPOUT CMOS LINE
立创商城:
LP38692MP-3.3
e络盟:
固定电压稳压器, LDO, 2.7V至10V, 650mV压差, 3.3V输出, 1A输出, SOT-223-5
艾睿:
Don&s;t let unpredictable voltage levels ruin your circuit! Use this LDO LP38692MP-3.3 linear regulator from Texas Instruments to control your voltage levels! It has an overall accuracy of ±2.5 %. Its typical dropout voltage at current is 0.065@100mA|0.65@1A V. This voltage regulation device&s;s single output can produce a current up to 1 A. This will operate at a minimum voltage of 2.7 V and a maximum voltage of 10 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Using a load regulation of 1.8%/ATyp and line regulation of 0.03%/VTyp is needed for a programmable DC power supply. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. The maximum dropout voltage is 0.11@100mA|1@1A V. Its polarity is positive.
Chip1Stop:
LDO Regulator Pos 3.3V 1A 5-Pin4+Tab SOT-223 T/R
Verical:
LDO Regulator Pos 3.3V 1A 5-Pin4+Tab SOT-223 T/R
Newark:
# TEXAS INSTRUMENTS LP38692MP-3.3 Fixed LDO Voltage Regulator, 2.7V to 10V, 650mV Dropout, 3.3Vout, 1Aout, SOT-223-5
罗切斯特:
LDO Regulator Pos 3.3V 1A 5-Pin4+Tab SOT-223 T/R
输出接口数 1
输出电压 3.3 V
输出电流 1 A
针脚数 5
静态电流 55.0 µA
输出电容类型 Ceramic
跌落电压 650 mV
调节输出数 1
输入电压Max 10 V
输入电压Min 2.7 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2.5 %
输入电压 ≤10 V
安装方式 Surface Mount
引脚数 5

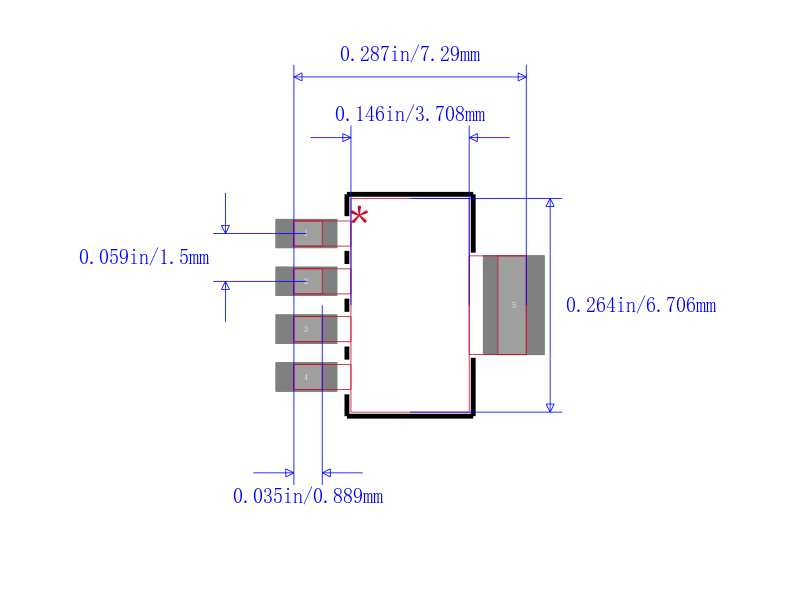

封装 TO-261-5
高度 1.6 mm
封装 TO-261-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 计算机和计算机周边, 便携式器材, 电源管理
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP38692MP-3.3 TI 德州仪器 | 当前型号 | 当前型号 |
LP38692MP-3.3/NOPB 德州仪器 | 完全替代 | LP38692MP-3.3和LP38692MP-3.3/NOPB的区别 |
LP38692MPX-3.3/NOPB 德州仪器 | 类似代替 | LP38692MP-3.3和LP38692MPX-3.3/NOPB的区别 |
LP38692MPX-3.3 德州仪器 | 类似代替 | LP38692MP-3.3和LP38692MPX-3.3的区别 |
