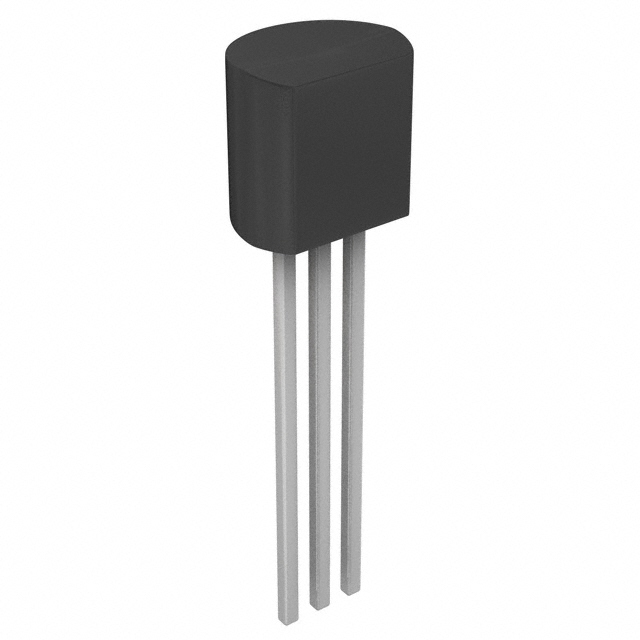

LM285BXZ-2.5/NOPB

LM185-2.5 -N / LM285-2.5 -N / LM385-2.5 -N微功耗电压基准二极管 LM185-2.5-N/LM285-2.5-N/LM385-2.5-N Micropower Voltage Reference Diode

DESCRIPON

The LM185-2.5-N/LM285-2.5-N/LM385-2.5-N are micropower 2-terminal band-gap voltage regulator diodes. Operating over a 20 μA to 20 mA current range, they feature exceptionally low dynamic impedance and good temperature stability. On-chip trimming is used to provide tight voltage tolerance. Since the LM-185-2.5-N band-gap reference uses only transistors and resistors, low noise and good long term stability result.

Careful design of the LM185-2.5-N has made the device exceptionally tolerant of capacitive loading, making it easy to use in almost any reference application. The wide dynamic operating range allows its use with widely varying supplies with excellent regulation.

FEATURES

• ±20 mV ±0.8% max. Initial Tolerance A Grade

• Operating Current of 20 μA to 20 mA

• 0.6Ω Dynamic Impedance A Grade

• Low Temperature Coefficient

• Low Voltage Reference—2.5V

• 1.2V Device and Adjustable Device Also Available—LM185-1.2 Series and LM185 Series, respectively
