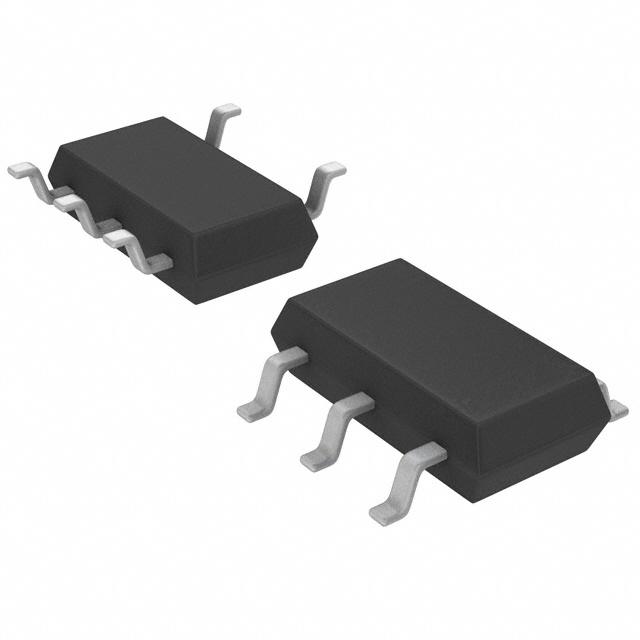

LDO Regulator Pos 1.8V 0.1A Automotive 5Pin TSOT-23 T/R
Maintain a steady voltage level with this LDO linear regulator from . Its typical dropout voltage at current is 0.1@1mA|0.17@10mA|0.24@50mA|0.3@100mA V. This voltage regulation device"s single output can produce a current up to 0.1 A. Using the part will provide the power your application needs by requiring a voltage only of 1.8 V and not exceeding a voltage of 20 V. With a fixed output that has a voltage of 1.8 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 30mV and line regulation of 10mV. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. The maximum dropout voltage is 0.15@1mA|0.22@10mA|0.28@50mA|0.35@100mA V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive.
输出接口数 1
输入电压DC 20.0V max
输出电压 1.8 V
输出电流 100 mA
跌落电压 0.1V @1mA,0.24V @50mA,0.17V @10mA,0.3V @100mA
输入电压Max 20 V
输入电压Min 1.8 V
输出电压Min 1.8 V
输出电流Max 0.1 a
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 ≤20 V
安装方式 Surface Mount
引脚数 5
封装 TSOT-23-5
长度 2.9 mm
宽度 1.625 mm
封装 TSOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT1761ES5-1.8#TRPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1761IS5-1.8#TRMPBF 凌力尔特 | 完全替代 | LT1761ES5-1.8#TRPBF和LT1761IS5-1.8#TRMPBF的区别 |
LT1761IS5-1.8#TRPBF 凌力尔特 | 完全替代 | LT1761ES5-1.8#TRPBF和LT1761IS5-1.8#TRPBF的区别 |
