低压差稳压器 A 926-LP2989AIM18NOPB
Linear Voltage Regulator IC 1 Output 500mA 8-SOIC
立创商城:
LP2989AIMX-1.8/NOPB
德州仪器TI:
500-mA, 16-V, low-dropout voltage regulator with power good
得捷:
IC REG LINEAR 1.8V 500MA 8SOIC
贸泽:
低压差稳压器 A 926-LP2989AIM18NOPB
艾睿:
Use the LDO LP2989AIMX-1.8/NOPB linear regulator from Texas Instruments to maintain a constant output voltage. It has an overall accuracy of ±0.75 %. This voltage regulation device&s;s single output can produce a current up to 0.5 A. By only needing an input voltage of 2.1 V with a maximum of 16 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 1.8 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 0.4%VTyp and line regulation of 0.014%/V. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 1.8V 0.5A 8-Pin SOIC N T/R
Chip1Stop:
LDO Regulator Pos 1.8V 0.5A 8-Pin SOIC T/R
Verical:
LDO Regulator Pos 1.8V 0.5A 8-Pin SOIC T/R
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 1.8V 500mA 8-SOIC
输出接口数 1
输出电压 1.8 V
输出电流 500 mA
供电电流 175µA ~ 9mA
静态电流 0.8 mA
输出电容类型 Ceramic
跌落电压 310 mV
调节输出数 1
输入电压Max 16 V
输入电压Min 2.1 V
输出电压Min 1.8 V
输出电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.75 %
输入电压 16V ~ 2.1V
安装方式 Surface Mount
引脚数 8

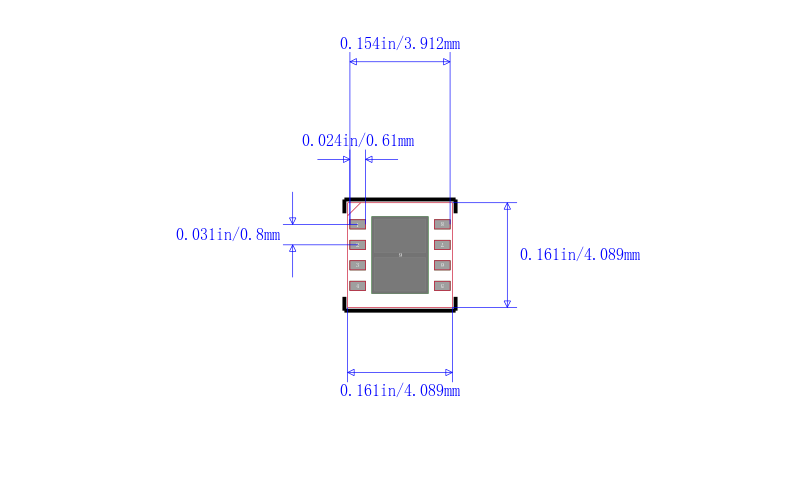

封装 SOIC-8
封装 SOIC-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP2989AIMX-1.8/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP2989AIM-1.8/NOPB 德州仪器 | 类似代替 | LP2989AIMX-1.8/NOPB和LP2989AIM-1.8/NOPB的区别 |
LP2989IM-1.8/NOPB 德州仪器 | 类似代替 | LP2989AIMX-1.8/NOPB和LP2989IM-1.8/NOPB的区别 |
LP2989IMX-1.8/NOPB 德州仪器 | 类似代替 | LP2989AIMX-1.8/NOPB和LP2989IMX-1.8/NOPB的区别 |
