TEXAS INSTRUMENTS LM1085IT-ADJ 电压稳压器, LDO, 可调, 2.6V至27V输入, 1.3V压差, 1.2V至15V/3A输出, TO-220-3
The is a low dropout Positive Regulator with adjustable dropout at 3A of load current. It has the same pin-out as "s industry standard LM317. Two resistors are required to set the output voltage of the adjustable output voltage version of the regulator. Adjustable output voltage version and the LM1085 circuit includes a Zener trimmed band gap reference, current limiting and thermal shutdown.
- .
- Current limiting and thermal protection
- .
- 0.015% Line regulation
- .
- 0.1% Load regulation
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
电源电压DC 29.0V max
额定电流 3.00 A
输出接口数 1
输出电压 1.2V ~ 15V
输出电流 3 A
针脚数 3
静态电流 10 mA
输出电容类型 Ceramic
跌落电压 1.3 V
调节输出数 1
输入电压Max 29 V
输入电压Min 2.6 V
输出电压Max 15 V
输出电压Min 1.2 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 15 V
电源电压Min 1.5 V
输入电压 2.6V ~ 29V
安装方式 Through Hole
引脚数 3

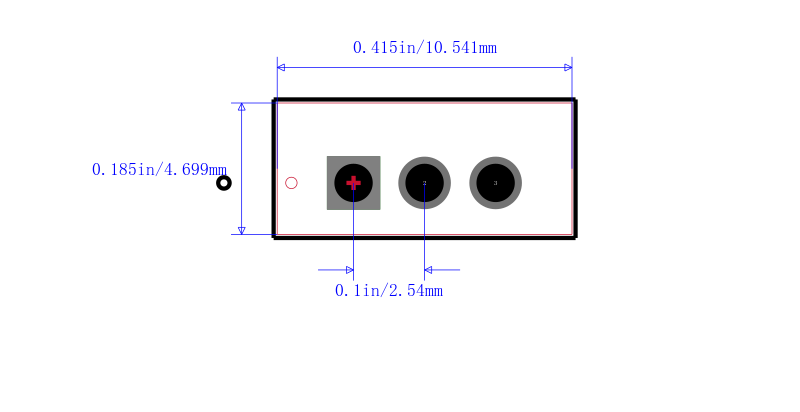

封装 TO-220-3
高度 8.89 mm
封装 TO-220-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
制造应用 电源管理
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LM1085IT-ADJ TI 德州仪器 | 当前型号 | 当前型号 |
LM1084IT-ADJ/NOPB 德州仪器 | 完全替代 | LM1085IT-ADJ和LM1084IT-ADJ/NOPB的区别 |
LM1085IT-ADJ/NOPB 德州仪器 | 类似代替 | LM1085IT-ADJ和LM1085IT-ADJ/NOPB的区别 |
LD1085V 意法半导体 | 功能相似 | LM1085IT-ADJ和LD1085V的区别 |
