ON Semiconductor### 直流-直流控制器、转换器和稳压器,ON Semiconductor
开关稳压器,降压直流 - 直流转换器,
电流模式和电压模式直流-直流转换器,适用于降压(步降)、升压(步升)和回扫应用。
### 直流-直流控制器、转换器和稳压器,ON Semiconductor
得捷:

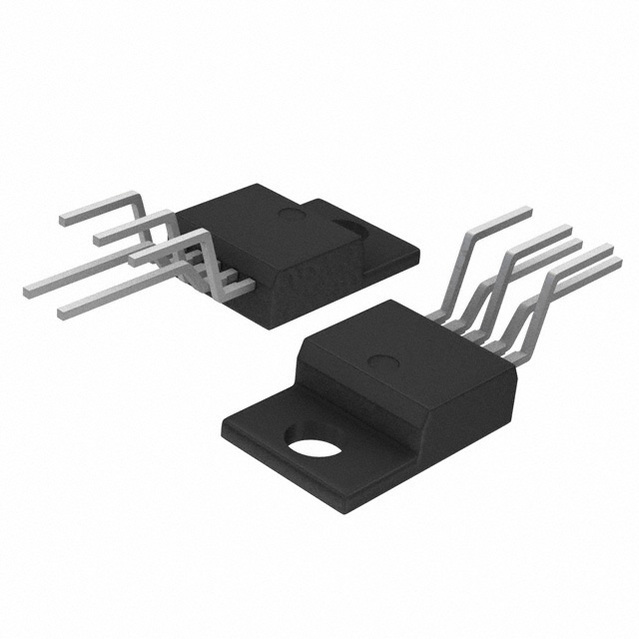

IC REG BUCK 3.3V TO220-5
欧时:
### 开关稳压器,降压直流 - 直流转换器,ON Semiconductor### 直流-直流控制器、转换器和稳压器,ON Semiconductor
贸泽:
开关稳压器 3.3V 1A Buck PWM
艾睿:
Adjust the voltage level of your devices with this step down LM2575TV-3.3G DC to DC converter from ON Semiconductor. This converter&s;s single output can produce a current up to 1 A. Using the part will provide the power your application needs by requiring a voltage only of 4.75 V and not exceeding a voltage of 40 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. This converter is 75typ % efficient. You can operate this at a switching frequency of 52Typ kHz. This product comes in rail packaging to keep individual parts separated and protected. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.
Allied Electronics:
Switching Reg, LM2575TV-3.3G TO220-5
安富利:
Conv DC-DC Single Step Down 4.75V to 40V 5-Pin5+Tab TO-220 Rail
Verical:
Conv DC-DC 4.75V to 40V Step Down Single-Out 3.3V 1A 5-Pin5+Tab TO-220 Tube
力源芯城:
1A,3.3V输出,降压型DC/DC变换器
Win Source:
Buck, Boost, Buck-Boost Switching Regulator IC Positive or Negative Fixed 3.3V 1 Output 1A TO-220-5 Formed Leads
无卤素状态 Halogen Free
输出接口数 1
输出电压 3.3 V
输出电流 1 A
开关频率 52 kHz
拓扑结构 Step-Down
输入电压Max 40 V
输入电压Min 4.75 V
输出电压Max 3.465 V
输出电压Min 3.3 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 4.75V ~ 40V
安装方式 Through Hole
引脚数 5
封装 TO-220-5
长度 10.54 mm
宽度 4.57 mm
高度 9.27 mm
封装 TO-220-5
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tube
制造应用 Negative Step-Up Converters, Simple and High-Efficiency Step-Down Buck Regulators, On-Card Switching Regulators, Positive to Negative Converters Buck-Boost, Power Supply for Battery Chargers, Efficient Pre-Regulator for Linear Regulators
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM2575TV-3.3G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
LM2575TV-3.3 安森美 | 完全替代 | LM2575TV-3.3G和LM2575TV-3.3的区别 |
