马达/运动/点火控制器和驱动器 SINGLE PHASE MOTOR DRIVER
The LA6584M is Single-phase bipolar fan motor is put into silent driving by means of BTL output linear drive, offering high efficiency and power saving by suppressing the reactive current. Lock protection and rotation signal FG, RD circuits are built in, ensuring optimum application to small fans for notebook PC, consumer equipment power supply, car audio system, CPU cooler, etc. that require high reliability and low noise.
Features
---
|
- .
- Single-phase full-wave driver for fan motor
输出电压 15 V
输出电流 1.6 A
耗散功率 1.5 W
工作温度Max 90 ℃
工作温度Min -30 ℃
电源电压 2.8V ~ 14V
安装方式 Surface Mount

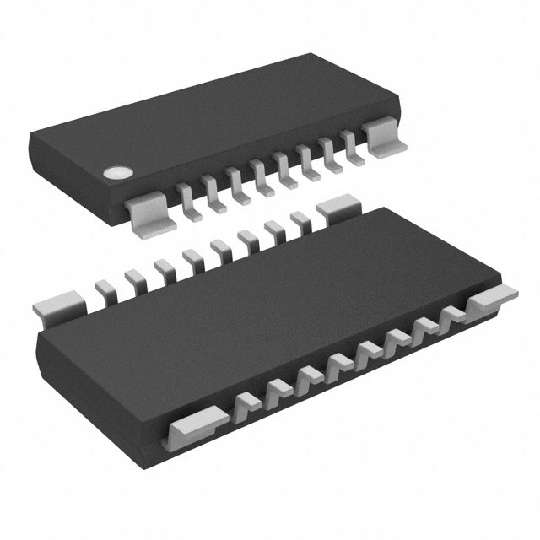

封装 MFP-16FS
封装 MFP-16FS
工作温度 -30℃ ~ 90℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 CPU cooling system, Consumer equipment power supply, DC 电机，通用, Car audio system
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LA6584M-MPB-E ON Semiconductor 安森美 | 当前型号 | 当前型号 |
LA6584M 安森美 | 功能相似 | LA6584M-MPB-E和LA6584M的区别 |
