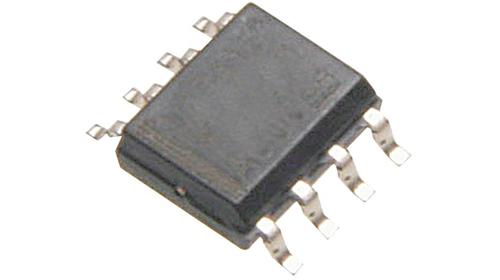

LM2936HVBMA-5.0/NOPB

TEXAS INSTRUMENTS  LM2936HVBMA-5.0/NOPB  固定电压稳压器, LDO, 5.5V至60V, 200mV压差, 5V输出, 50mA输出, SOIC-8

LDO（低压降）线性稳压器，最大 100mA，4.0V 至 15V，Texas Instruments

### LDO（低压降）线性稳压器，Texas Instruments

低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

得捷:
IC REG LINEAR 5V 50MA 8SOIC

欧时:
Texas Instruments LM2936HVBMA-5.0/NOPB LDO 稳压器, 5 V输出, 50mA最大输出, ±2%精确度, 4 → 60 V输入

立创商城:
LM2936HVBMA-5.0/NOPB

德州仪器TI:
50-mA, 60-V, low-IQ, low-dropout voltage regulator with reverse voltage protection

e络盟:
固定电压稳压器, LDO, 5.5V至60V, 200mV压差, 5V输出, 50mA输出, SOIC-8

艾睿:
Having trouble maintaining a steady voltage? This LDO LM2936HVBMA-5.0/NOPB linear regulator from Texas Instruments will give you control over the voltage levels of your circuit. Its typical dropout voltage at current is 0.05@100uA|0.2@50mA V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.05 A. It only needs a voltage of at least 4 V while not exceeding 60 V to effectively power your circuit. With a fixed output that has a voltage of 5 V, this is power management at its best. At a load regulation of 30mV and line regulation of 30mV a constant current can be produced at the output of your circuit. This product comes in rail packaging to keep individual parts separated and protected. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. The maximum dropout voltage is 0.1@100uA|0.4@50mA V.

安富利:
LDO Regulator Pos 5V 0.05A 8-Pin SOIC N Rail

Chip1Stop:
LDO Regulator Pos 5V 0.05A 8-Pin SOIC Rail

Verical:
LDO Regulator Pos 5V 0.05A Automotive 8-Pin SOIC Tube

Newark:
The LM2936HVBMA-5.0/NOPB is an ultra-low quiescent current LDO Voltage Regulator features low dropout voltage and low current in the standby mode. With less than 15μA quiescent current at a 100μA load, the LM2936 is ideally suited for automotive and other battery operated systems and retains all of the features that are common to low dropout regulators including a low dropout PNP pass device, short circuit protection, reverse battery protection and thermal shutdown. This regulator has a 5V output voltage and ±3% output voltage tolerance over the entire output current, input voltage.

DeviceMart:
IC REG LDO 5V 50MA 8SOIC

Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 5V 50mA 8-SOIC
