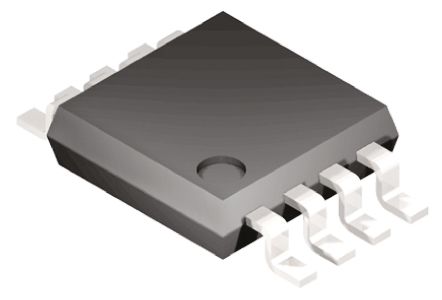

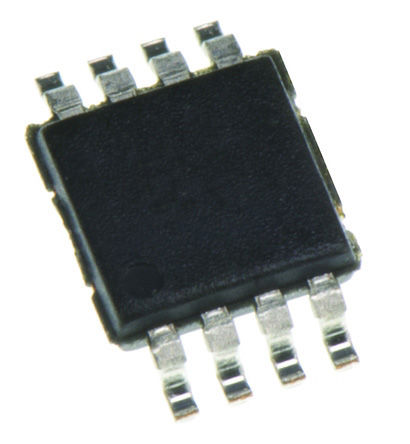

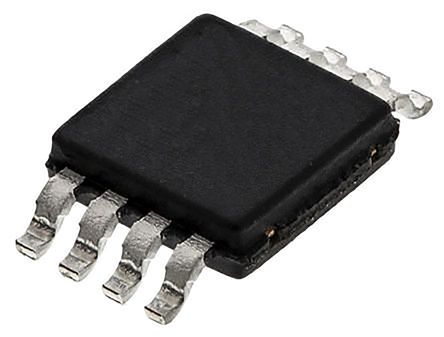

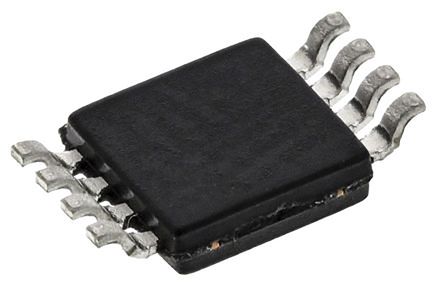

LP2989AIMM-3.3/NOPB

TEXAS INSTRUMENTS  LP2989AIMM-3.3/NOPB  固定电压稳压器, LDO, 2.1V至16V, 310mV压差, 3.3V输出, 500mA输出, MSOP-8

LDO（低压降）线性稳压器，500mA，Texas Instruments

欧时:
### LDO（低压降）线性电压调节器，500mA，Texas Instruments### LDO（低压降）线性电压调节器，Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

得捷:
IC REG LINEAR 3.3V 500MA 8VSSOP

立创商城:
正 Vin=16V Vout=3.3V 500mA 60dB@1kHz

德州仪器TI:
500-mA, 16-V, low-dropout voltage regulator with power good & enable

e络盟:
# TEXAS INSTRUMENTS  LP2989AIMM-3.3/NOPB  固定电压稳压器, LDO, 2.1V至16V, 310mV压差, 3.3V输出, 500mA输出, MSOP-8

艾睿:
Keep the energy stable for every system by using this LDO LP2989AIMM-3.3/NOPB linear regulator by Texas Instruments. It has an overall accuracy of ±0.75 %. Its typical dropout voltage at current is 0.001@0.1mA|0.15@200mA|0.31@500mA V. This voltage regulation device&s;s single output can produce a current up to 0.5 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.1 V that does not exceed 16 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Users like the load regulation of 0.4%Typ and line regulation of 0.014%/V. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. The maximum dropout voltage is 0.003@0.1mA|0.2@200mA|0.425@500mA V.

安富利:
LDO Regulator Pos 3.3V 0.5A 8-Pin MSOP T/R

Chip1Stop:
LDO Regulator Pos 3.3V 0.5A 8-Pin VSSOP T/R

Verical:
LDO Regulator Pos 3.3V 0.5A 8-Pin VSSOP T/R

Newark:
# TEXAS INSTRUMENTS  LP2989AIMM-3.3/NOPB  Fixed LDO Voltage Regulator, 2.1V to 16V, 310mV Dropout, 3.3Vout, 500mAout, MSOP-8

DeviceMart:
IC REG LDO 3.3V .5A 8MSOP

Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 500mA 8-VSSOP
