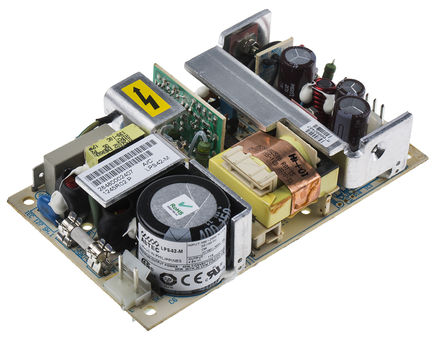

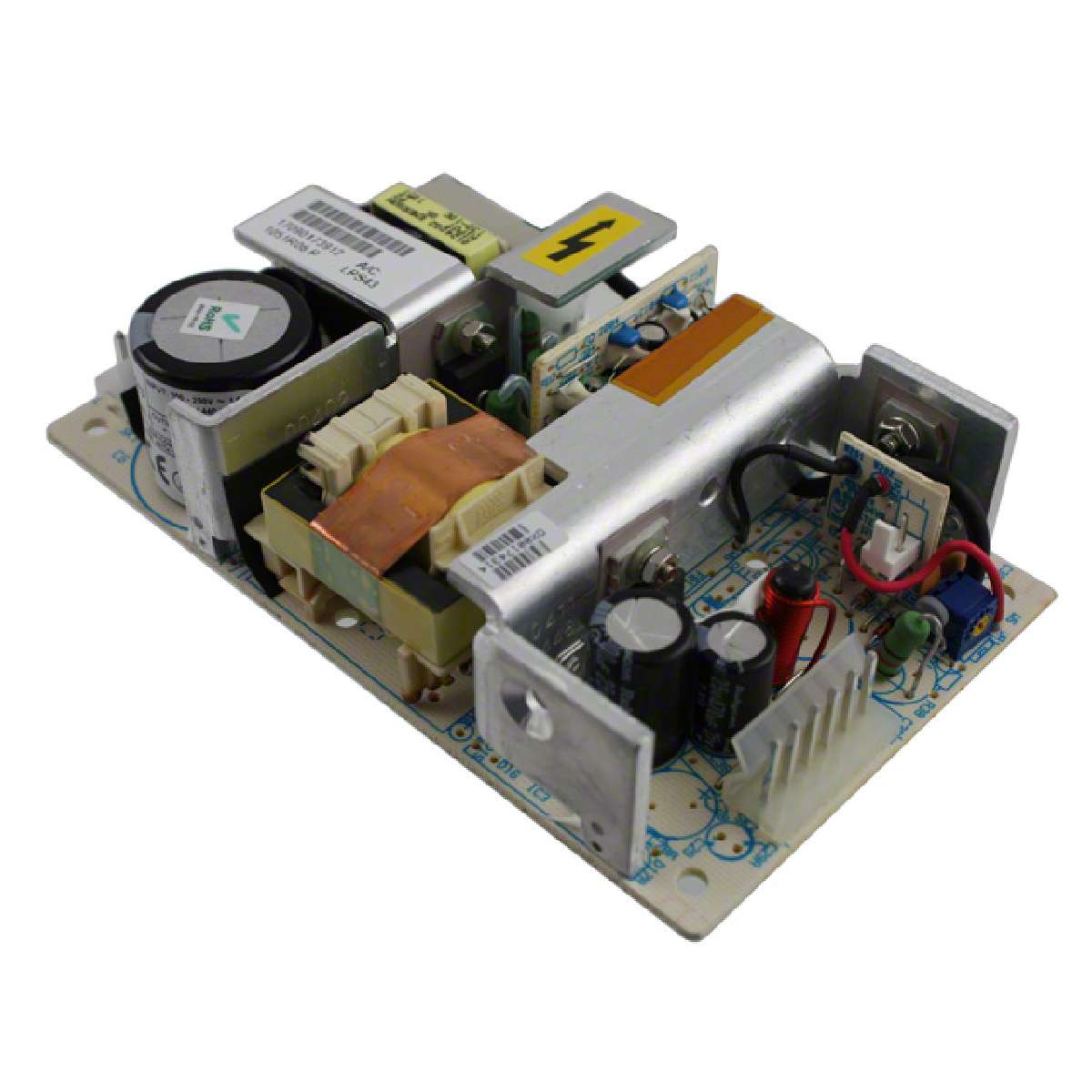

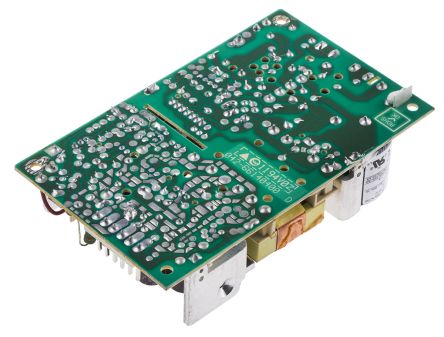

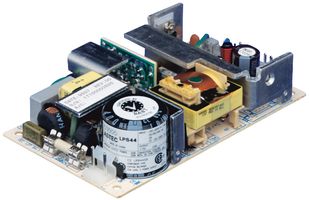

40W to 60W Medically Approved, Single/Triple Output
In-built EMI filter Class B
Overload and overvoltage protection
Medical safety approvals
Remote sense on main output
Adjustable output option
Frequency | 47-440Hz
---|---
Connections | Molex KK not supplied
Forced air cooling of 30CFM @ 50°C increases the 40W O/P to 55W, and the 60W units to 80W. Ratings are reduced with a cover kit. |
### 注
Total of output loads must not exceed rating of unit. Figures in brackets indicate overall size with cover.
### 标准
VDE0750/EN60601-1, UL2901, CSA 22.2 NO 601.1
