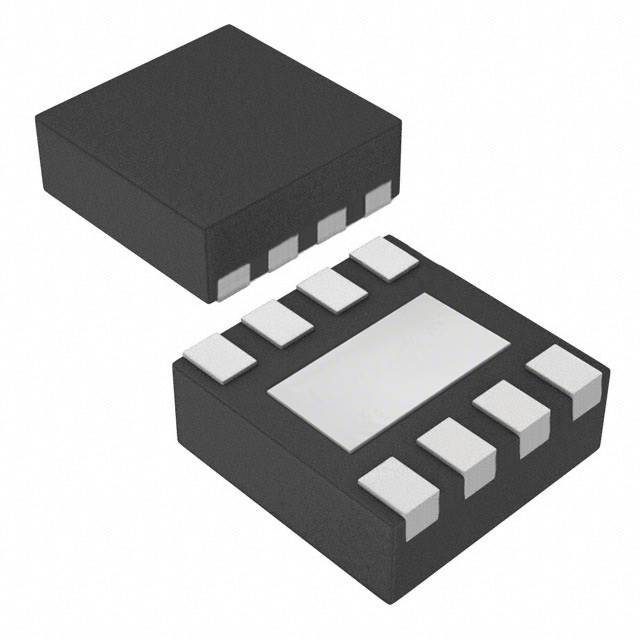

LP3879微800毫安低噪声陶瓷稳定的稳压器低电压应用 LP3879 Micropower 800mA Low Noise Ceramic Stable Voltage Regulator for Low Voltage Applications
Linear Voltage Regulator IC 1 Output 800mA 8-WSON 4x4
得捷:
IC REG LINEAR 1V 800MA 8WSON
立创商城:
LP3879SD-1.0/NOPB
德州仪器TI:
800-mA, low-dropout voltage regulator with low-noise & enable
贸泽:
低压差稳压器 800Ma Low-Nois LDO
艾睿:
Stable voltages are always needed for sensitive systems implement this LDO LP3879SD-1.0/NOPB linear regulator from Texas Instruments. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.8 A. It only needs a voltage of at least 2.5 V while not exceeding 6 V to effectively power your circuit. With a fixed output that has a voltage of 1 V, this is power management at its best. Maintain a constant voltage level with a line regulation of 0.014%/V. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
安富利:
LDO Regulator Pos 1V 0.8A 8-Pin LLP EP T/R
Chip1Stop:
LDO Regulator Pos 1V 0.8A 8-Pin WSON EP T/R
DeviceMart:
IC REG LDO 1V .8A 8-LLP
容差 ±3 %
输出接口数 1
输入电压DC 6.00V max
输出电压 1 V
输出电流 800 mA
供电电流 1.4mA ~ 2.2mA
静态电流 200 µA
输出电容类型 Ceramic
跌落电压 475 mV
调节输出数 1
输入电压Max 6 V
输入电压Min 2.5 V
输出电压Min 1 V
输出电流Max 0.8 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 2.5V ~ 6V
安装方式 Surface Mount
引脚数 8
封装 WDFN-8
封装 WDFN-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP3879SD-1.0/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP3879SD-1.0 德州仪器 | 完全替代 | LP3879SD-1.0/NOPB和LP3879SD-1.0的区别 |
LP3879SDX-1.0/NOPB 德州仪器 | 完全替代 | LP3879SD-1.0/NOPB和LP3879SDX-1.0/NOPB的区别 |
LP3879SDX-1.0 德州仪器 | 完全替代 | LP3879SD-1.0/NOPB和LP3879SDX-1.0的区别 |
