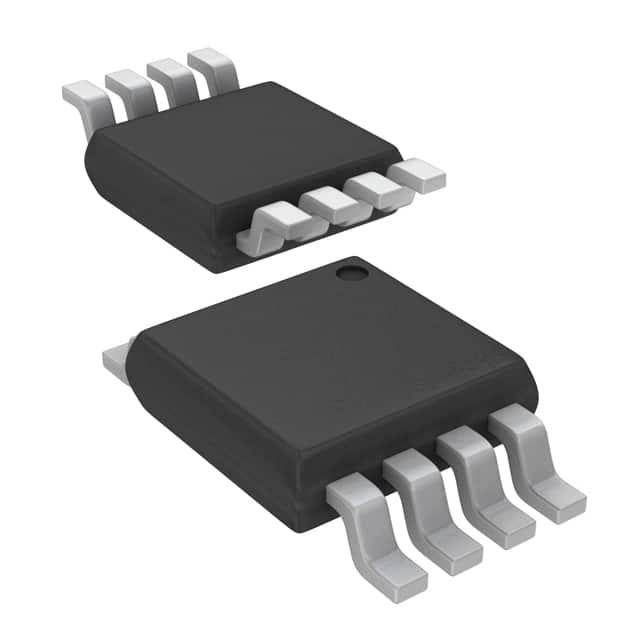

LP2986IMM-3.0/NOPB

具有可调节或固定电压配置的 200mA、16V 低压降稳压器 8-VSSOP -40 to 125

The LP2986 is a 200-mA high-precision LDO regulator with a wide input voltage supply. The device has two output voltage modes: a fixed-precision output mode and an adjustable output voltage via an external resistive divider.

Using an optimized Vertically Integrated PNP VIP process, the LP2986 delivers superior performance:

立创商城:
LP2986IMM-3.0/NOPB

德州仪器TI:
200-mA, 16-V, low-dropout voltage regulator with adjustable or fixed voltage configuration

得捷:
IC REG LINEAR 3V 200MA 8VSSOP

艾睿:
This LDO LP2986IMM-3.0/NOPB linear regulator from Texas Instruments is used to manipulate the voltage level of your circuit. It has an overall accuracy of ±1 %. Its typical dropout voltage at current is 0.001@0.1mA|0.09@75mA|0.18@200mA V. This voltage regulation device&s;s single output can produce a current up to 0.2 A. This will operate at a minimum voltage of 2.1 V and a maximum voltage of 16 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 3 V, this is power management at its best. Users like the line regulation of 0.014%/V. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. The maximum dropout voltage is 0.002@0.1mA|0.12@75mA|0.23@200mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.

Chip1Stop:
LDO Regulator Pos 3V 0.2A 8-Pin VSSOP T/R

Verical:
LDO Regulator Pos 3V 0.2A 8-Pin VSSOP T/R

DeviceMart:
IC REG LDO 3V .2A 8-MSOP

Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 3V 200mA 8-VSSOP
