4.5V 至 42V 宽输入电压、恒定导通时间非同步 PFET 降压控制器 8-VSSOP -40 to 125
降压 稳压器 正 输出 降压 - DC DC 切换控制器 IC 8-VSSOP
立创商城:

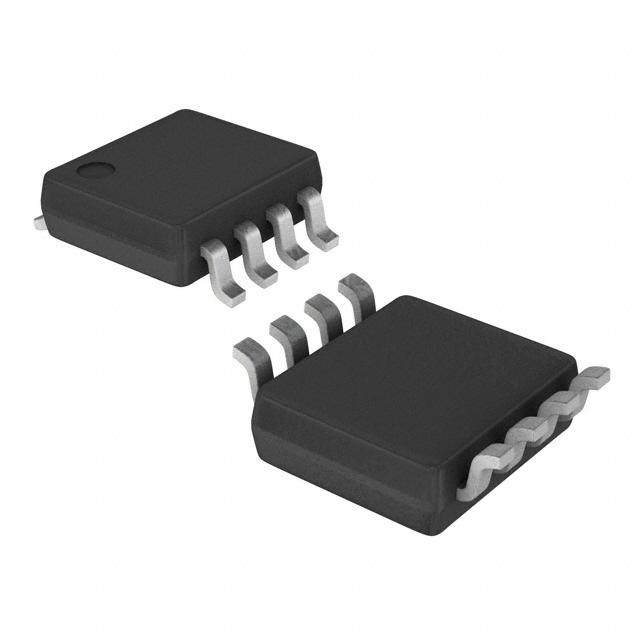

LM25085MMX/NOPB
德州仪器TI:
4.5-42V Wide Vin, Constant On-Time Non-Synchronous PFET Buck Controller
得捷:
IC REG CTRLR BUCK 8VSSOP
贸泽:
Switching Controllers 42V Constant PFET Buck Switch Cntlr
艾睿:
The buck LM25085MMX/NOPB DC voltage controller from Texas Instruments can step the voltage in your circuit up or down, depending upon what your requirements are. With an output that has a voltage of 1.25 to 42 V, this is power management at its best. This DC voltage controller has single output. Its output produces a current of 1.75 A. This DC voltage controller has an input voltage of 4.5 to 42 V. This part offers a switching frequency of 1000 kHz in order to work properly. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This DC voltage controller has a minimum operating temperature of -40 °C and a maximum of 125 °C.
安富利:
DC DC Cntrlr Single-OUT Buck 4.5V to 42V Input 8-Pin MSOP T/R
Chip1Stop:
DC DC Cntrlr Single-OUT Buck 4.5V to 42V Input 8-Pin VSSOP T/R
Verical:
DC DC Cntrlr Single-OUT Buck 4.5V to 42V Input 8-Pin VSSOP T/R
Win Source:
Buck Regulator Positive Output Step-Down DC-DC Controller IC 8-VSSOP
输出接口数 1
输出电压 1.25V ~ 42V
输出电流 1.75 A
静态电流 1.25 mA
调节输出数 1
开关频率 1MHz MAX
拓扑结构 Buck
输入电压Max 42 V
输入电压Min 4.5 V
最大占空比 100 %
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 4.5V ~ 42V
安装方式 Surface Mount
引脚数 8
封装 VSSOP-8
封装 VSSOP-8
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM25085MMX/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM25085MME/NOPB 德州仪器 | 类似代替 | LM25085MMX/NOPB和LM25085MME/NOPB的区别 |
LM25085MM/NOPB 德州仪器 | 类似代替 | LM25085MMX/NOPB和LM25085MM/NOPB的区别 |
