参考电压 Opto Driver
Even in the event of large power supply variations, this voltage reference power management device from can produce and maintain a precise DC voltage. With an output that has a voltage of 2.5 to 36 V, this is power management at its best. It has an initial accuracy of 0.4%. Use this part at voltages lower than 36 V. This voltage reference circuit supports shunt topology. This voltage reference circuit has a minimum operating temperature of 0 °C and a maximum of 70 °C. It runs with a maximum temperature coefficient of 30ppm/°CTyp.
容差 ±0.4 %
输出电压 2.5V ~ 36V
输出电流 100 mA
通道数 1
输入电压Max 36 V
输出电压Max 36 V
输出电压Min 2.5 V
输出电流Max 100 mA
工作温度Max 70 ℃
工作温度Min 0 ℃
精度 ±0.4 %

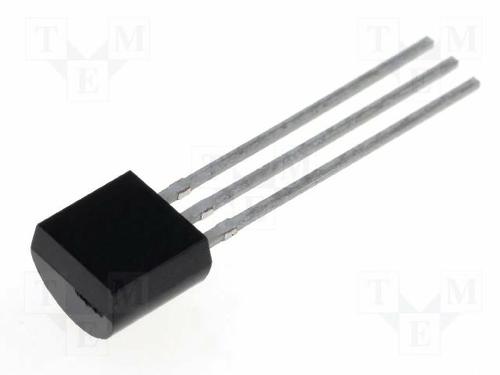

安装方式 Through Hole
引脚数 3
封装 TO-226-3
高度 3.55 mm
封装 TO-226-3
工作温度 0℃ ~ 70℃ TA
温度系数 ±30 ppm/℃
产品生命周期 Unknown
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LT1431CZ#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1431CZ#TRPBF 凌力尔特 | 完全替代 | LT1431CZ#PBF和LT1431CZ#TRPBF的区别 |
LT1431IZ#PBF 亚德诺 | 功能相似 | LT1431CZ#PBF和LT1431IZ#PBF的区别 |
LT1431IZ#TR 凌力尔特 | 功能相似 | LT1431CZ#PBF和LT1431IZ#TR的区别 |
