LT3009EDC-3.3#TRMPBF

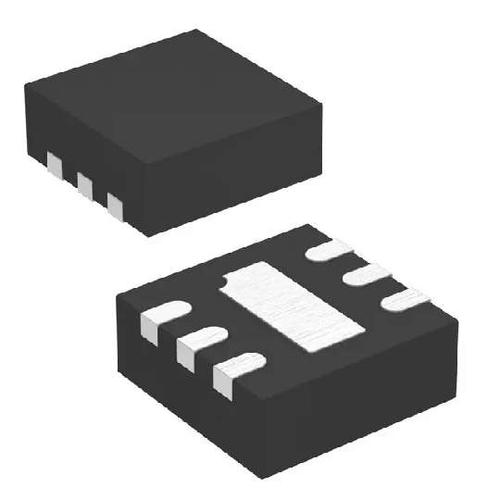

LDO Regulator Pos 3.3V 0.02A 6Pin DFN EP T/R

This LDO linear regulator from acts like a variable resistor to maintain a steady voltage level. Its typical dropout voltage at current is 0.115@100uA|0.17@1mA|0.25@10mA|0.28@20mA V. It has an overall accuracy of ±2 %. This voltage regulation device"s single output can produce a current up to 0.02 A. The best way to provide power to your application is by using this, which needs a voltage of at least 1.6 V and no higher than 20 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Using a load regulation of 16.5mV and line regulation of 8.3mV is needed for a programmable DC power supply. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 0.18@100uA|0.25@1mA|0.31@10mA|0.35@20mA V.
