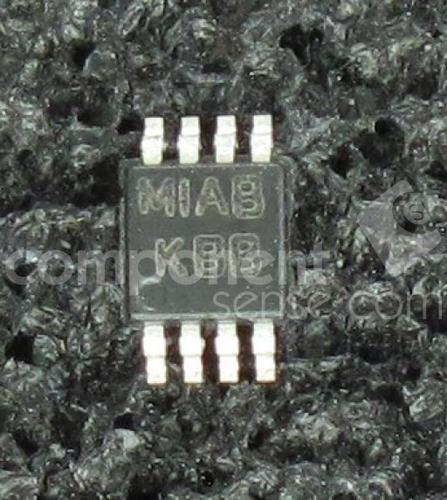

TEXAS INSTRUMENTS LM2936MM-3.3 固定电压稳压器, LDO, 5.5V至40V, 200mV压差, 3.3V输出, 50mA输出, VSSOP-8
PMIC - 稳压器 - 线性 正 固定 输出 50mA 8-VSSOP
得捷:
IC REG LINEAR 3.3V 50MA 8VSSOP
立创商城:
正 Vin=40V Vout=3.3V 50mA 60dB@120Hz
e络盟:
固定电压稳压器, LDO, 5.5V至40V, 200mV压差, 3.3V输出, 50mA输出, VSSOP-8
艾睿:
Stable voltages are always needed for sensitive systems implement this LDO LM2936MM-3.3 linear regulator from Texas Instruments. Its typical dropout voltage at current is 0.05@100uA|0.2@50mA V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.05 A. With a small input voltage of 4 V and a max of 40 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Users like the load regulation of 30mV and line regulation of 30mV. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 0.1@100uA|0.4@50mA V.
安富利:
LDO Regulator Pos 3.3V 0.05A 8-Pin MSOP T/R
Chip1Stop:
LDO Regulator Pos 3.3V 0.05A 8-Pin VSSOP T/R
Newark:
# TEXAS INSTRUMENTS LM2936MM-3.3 Fixed LDO Voltage Regulator, 5.5V to 40V, 200mV Dropout, 3.3Vout, 50mAout, VSSOP-8
输出接口数 1
输出电压 3.3 V
输出电流 50 mA
针脚数 8
静态电流 0.015 mA
跌落电压 200 mV
调节输出数 1
输入电压Max 40 V
输入电压Min 5.5 V
输出电流Max 0.05 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 5.5V ~ 40V
安装方式 Surface Mount
引脚数 8

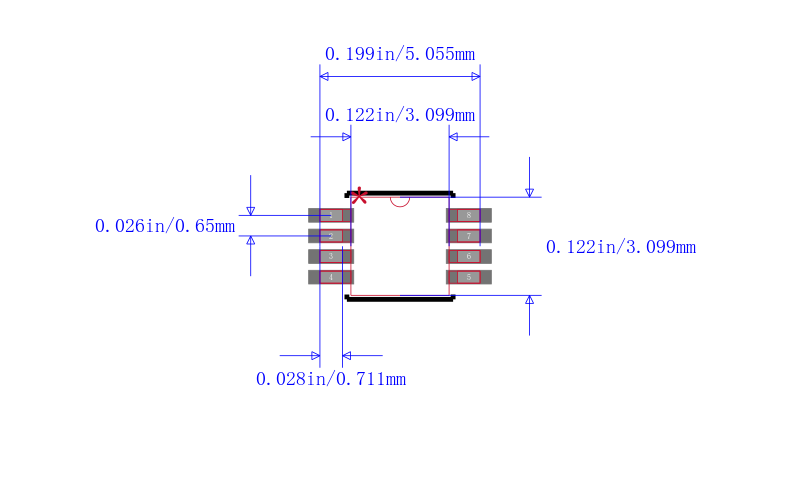

封装 VSSOP-8
封装 VSSOP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM2936MM-3.3 TI 德州仪器 | 当前型号 | 当前型号 |
LM2936MM-3.3/NOPB 德州仪器 | 类似代替 | LM2936MM-3.3和LM2936MM-3.3/NOPB的区别 |
LM2936MMX-3.3/NOPB 德州仪器 | 类似代替 | LM2936MM-3.3和LM2936MMX-3.3/NOPB的区别 |
LM2936MMX-3.3 德州仪器 | 类似代替 | LM2936MM-3.3和LM2936MMX-3.3的区别 |
