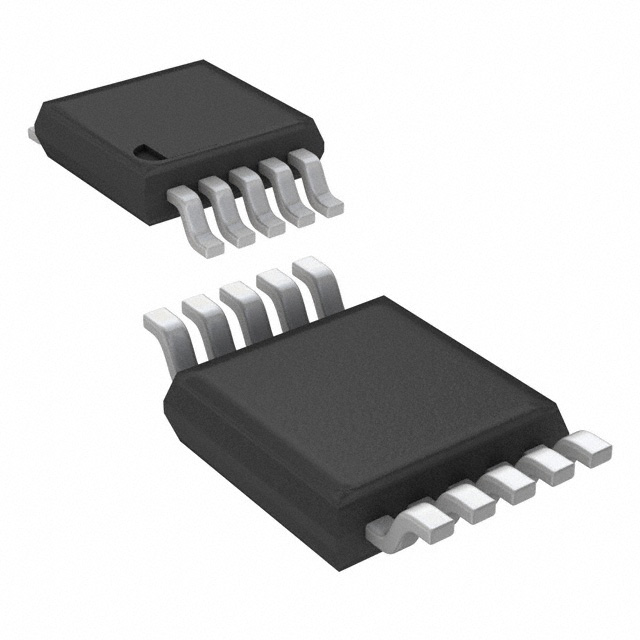

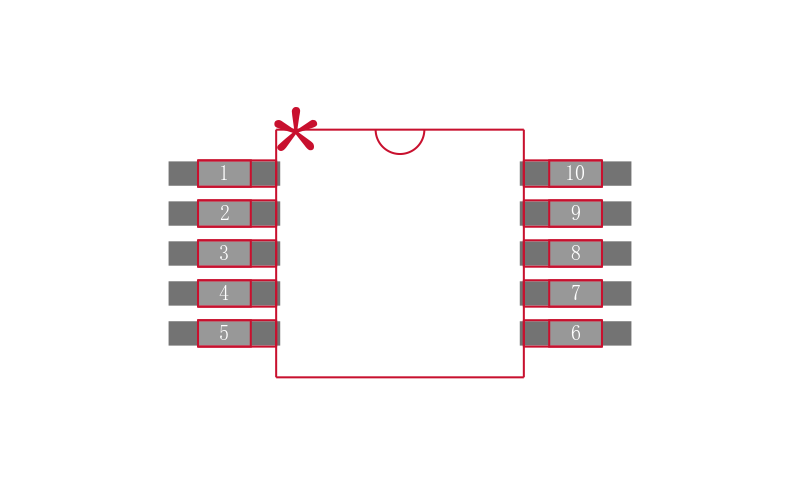

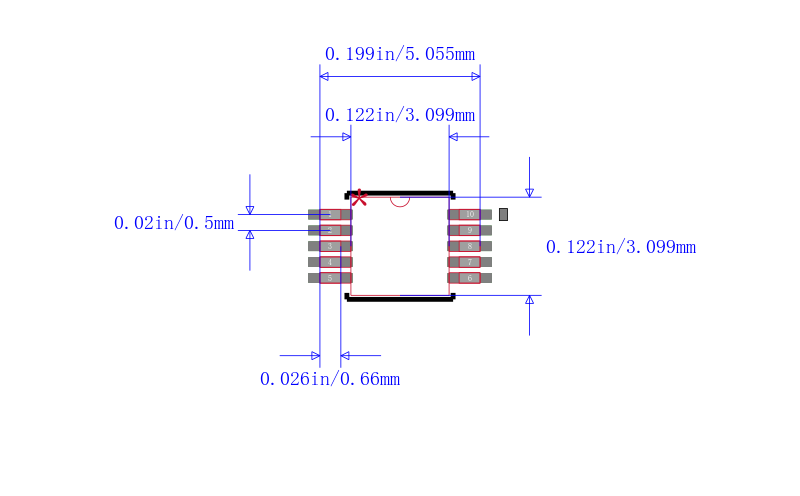

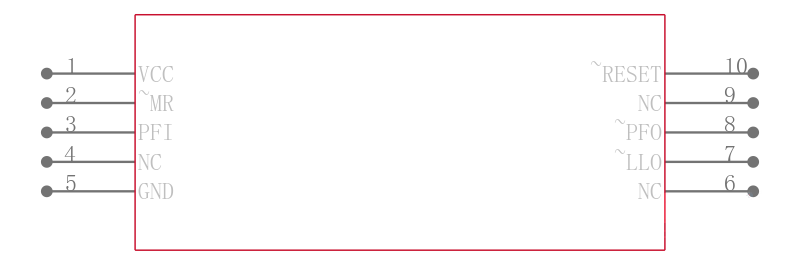

LM3704YCMMX-308/NOPB

具有电源故障输入、低电平线路输出和手动复位功能的电 压监控器和复位 IC 10-VSSOP -40 to 85

DESCRIPON

The LM3704/LM3705 series of microprocessor supervisory circuits provide the maximum flexibility for monitoring power supplies and battery controlled functions in systems without backup batteries. The LM3704/LM3705 series are available in VSSOP-10 and 9-bump DSBGA packages.

Built-in features include the following: Reset: Reset is asserted during power-up, power

down, and brownout conditions. RESET is ensured down to

.

*Vcc **of 1.0V.

Manual Reset Input: An input that asserts reset when pulled low.

Power-Fail Input: A 1.225V threshold detector for power fail warning, or to monitor a power supply other than

.

*Vcc **Low Line Output: This early power failure warning

indicator goes low when the supply voltage drops to a value which is 2% higher than the reset threshold voltage.

2• Standard Reset Threshold Voltage: 3.08V

• Custom Reset Threshold Voltages: For Othe

Voltages Between 2.2V and 5.0V in 10mV

Increments, Contact Texas Instruments.

• No External Components Required

• Manual-Reset Input

• Precision Supply Voltage Monitor

• Factory Programmable Reset Timeout Delay

• Separate Power Fail Comparator

• Available in DSBGA Package for Minimum Footprint
