LM2936MM-5.0

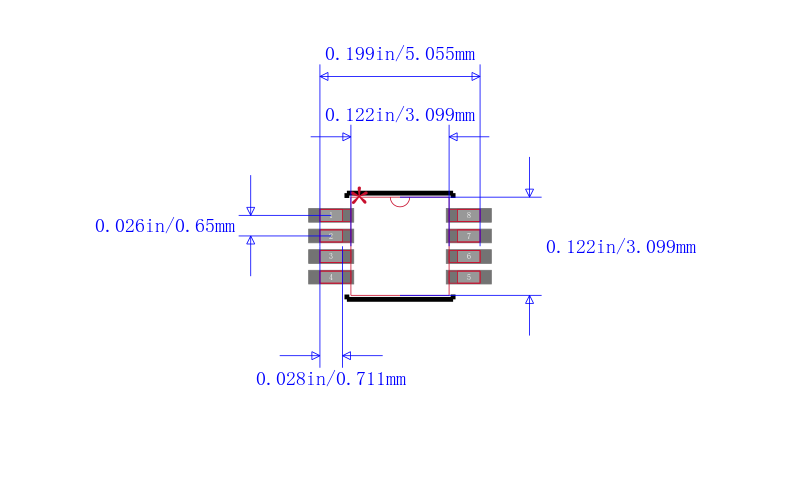

TEXAS INSTRUMENTS  LM2936MM-5.0  固定电压稳压器, LDO, 5.5V至40V, 200mV压差, 5V输出, 50mA输出, VSSOP-8

The is a 5V fixed output ultra-low quiescent current Linear Regulator features low-dropout LDO voltage and low current in the standby mode. With less than 15µA quiescent current at a 100µA load, the device is ideally suited for automotive and other battery operated systems. The device retains all of the features that are common to low-dropout LDO regulators including a low-dropout LDO PNP pass device, short circuit protection, reverse battery protection and thermal shutdown. The device has a 40V maximum operating voltage limit and ±3% output voltage tolerance over the entire output current, input voltage and temperature range.

.

±2% Initial output tolerance

.

±3% Output tolerance over line, load and temperature

.

Dropout voltage typically 200mV at IOUT = 50mA

.

-24V Input voltage protection

.

-50V Input transient protection
