LP38851 800毫安快速响应高精度可调LDO线性稳压器与启用和软启动 LP38851 800 mA Fast-Response High-Accuracy Adjustable LDO Linear Regulator with Enable and Soft-Start
Control the voltage level of your circuit with this LDO linear regulator from Texas Instruments. Its typical dropout voltage at current is 0.115@800mA V. It has an overall accuracy of ±1.5 %. This voltage regulation device"s single output can produce a current up to 0.8 A. The best way to provide power to your application is by using this, which needs a voltage of at least 0.915 V and no higher than 5.5 V. With an adjustable output that has a voltage of 0.8 to 1.8 V, this is power management at its best. Using a load regulation of 0.2%/ATyp and line regulation of 0.04%/VTyp is needed for a programmable DC power supply. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. The maximum dropout voltage is 0.15@800mA V. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
输出接口数 1
输出电压 0.8V ~ 1.8V
输出电流 800 mA
静态电流 7 mA
输出电容类型 Ceramic
跌落电压 0.115V @800mA
调节输出数 1
输入电压Max 5.5 V
输入电压Min 0.915 V
输出电流Max 0.8 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1.5 %
输入电压 ≤5.5 V
安装方式 Surface Mount
引脚数 8

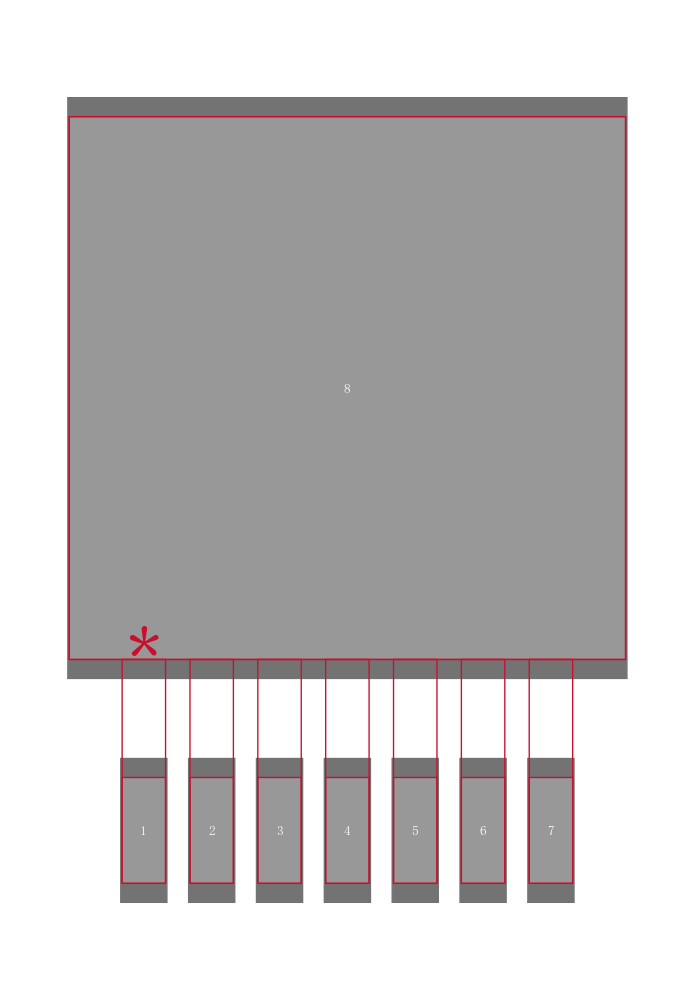

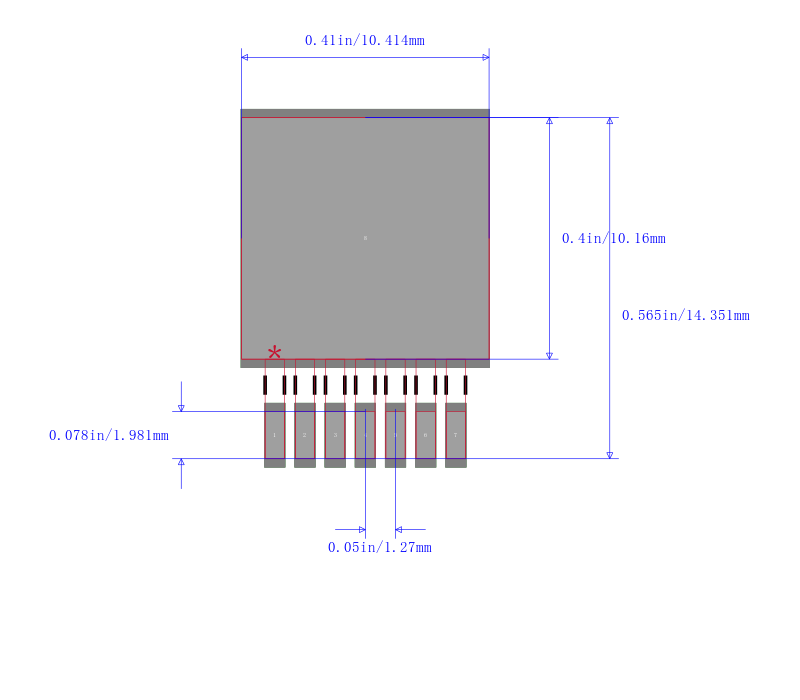

封装 TO-263-8
封装 TO-263-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准
含铅标准 Contains Lead
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP38851SX-ADJ/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP38851SX-ADJ 德州仪器 | 类似代替 | LP38851SX-ADJ/NOPB和LP38851SX-ADJ的区别 |
