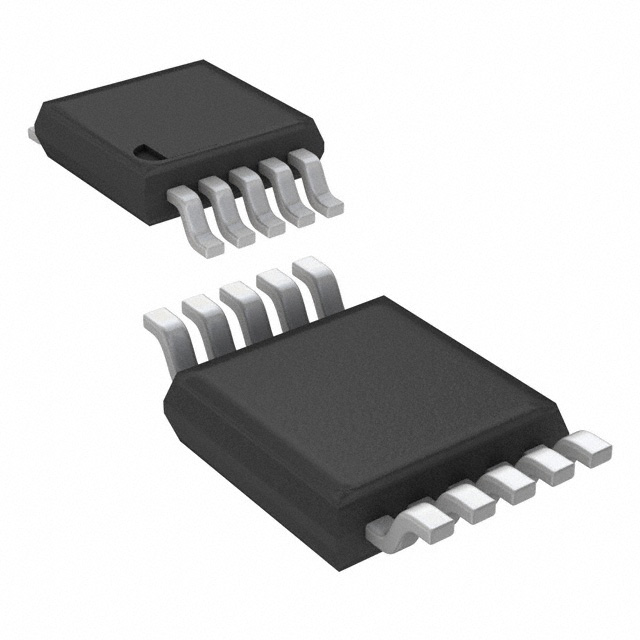

LM3704YCMM-308/NOPB图片1
LM3704YCMM-308/NOPB图片2
LM3704YCMM-308/NOPB图片3
LM3704YCMM-308/NOPB图片4
LM3704YCMM-308/NOPB图片5
LM3704YCMM-308/NOPB图片6
LM3704YCMM-308/NOPB图片7
LM3704YCMM-308/NOPB图片8
LM3704YCMM-308/NOPB概述

监控/电压检测器芯片, 低电平有效, 1 V至5.5 V电源, 3.08 V阈值, MSOP-10

The is a feature-rich easy-to-use Voltage Supervisor with power-fail input, low-line output and manual reset. It is offered in both push-pull and open-drain configuration with a tight 2% accuracy over-temperature. The power-fail input allows for a configurable second rail to be monitored helping detect upstream failures. The low-line output is used as a second interrupt line to indicate a fall in VCC 1.02 x VRST.

.
No external components required
.
Separate power-fail comparator
.
±0.5% Reset threshold accuracy at room temperature
.
±2% Reset threshold accuracy over temperature
.
28µA VCC supply current
.
Green product and no Sb/Br
LM3704YCMM-308/NOPB中文资料参数规格
技术参数

供电电流 28.0 µA

针脚数 10

静态电流 28.0 µA

阈值电压 3.08 V

输入电压Max 5.5 V

复位电压Min 3.06 V

复位电压Max 3.1 V

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压Max 5.5 V

电源电压Min 1 V

封装参数

安装方式 Surface Mount

引脚数 10

封装 MSOP-10

外形尺寸

封装 MSOP-10

物理参数

工作温度 -40℃ ~ 85℃ TJ

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

LM3704YCMM-308/NOPB引脚图与封装图

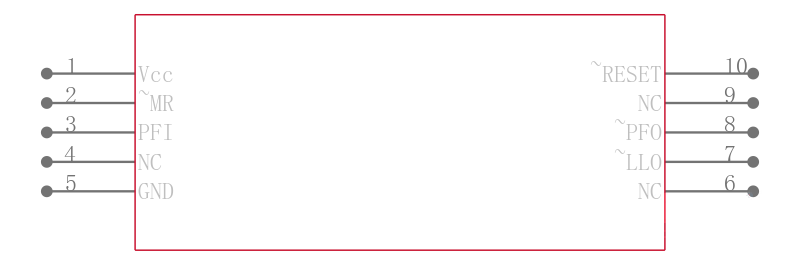

LM3704YCMM-308/NOPB引脚图

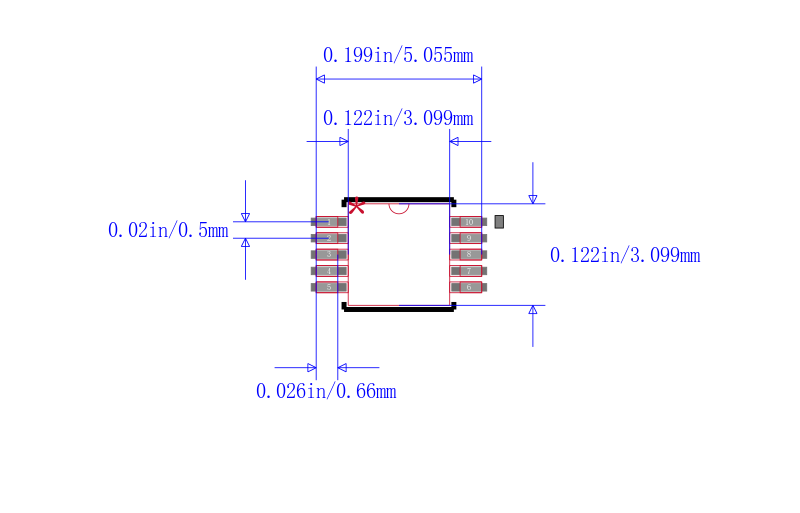

LM3704YCMM-308/NOPB封装图
LM3704YCMM-308/NOPB封装焊盘图
在线购买LM3704YCMM-308/NOPB
型号: LM3704YCMM-308/NOPB
制造商: TI 德州仪器
描述:监控/电压检测器芯片, 低电平有效, 1 V至5.5 V电源, 3.08 V阈值, MSOP-10
替代型号LM3704YCMM-308/NOPB
型号/品牌 代替类型 替代型号对比

LM3704YCMM-308/NOPB

TI 德州仪器

当前型号

当前型号

LM3704YCMM-308

德州仪器

完全替代

LM3704YCMM-308/NOPB和LM3704YCMM-308的区别

LM3704YCMMX-308/NOPB

德州仪器

功能相似

LM3704YCMM-308/NOPB和LM3704YCMMX-308/NOPB的区别
