具有使能功能的 1.5A、低输入电压 0.98V、超低压降稳压器 5-DDPAK/TO-263 -40 to 125
Linear Voltage Regulator IC 1 Output 1.5A DDPAK/TO-263-5
得捷:
IC REG LINEAR 1.2V 1.5A DDPAK
立创商城:
LP38855SX-1.2/NOPB
德州仪器TI:
1.5-A, low-VIN 0.98-V, ultra-low-dropout voltage regulator with enable
贸泽:
LDO Voltage Regulators 1.5A Fast-Response Hi-Acc LDO Linear Rg
艾睿:
Maintain a steady voltage level with this LDO LP38855SX-1.2/NOPB linear regulator from Texas Instruments. It has an overall accuracy of ±1 %. Its typical dropout voltage at current is 0.13@1.5A V. This voltage regulation device&s;s single output can produce a current up to 1.5 A. Using the part will provide the power your application needs by requiring a voltage only of 0.98 V and not exceeding a voltage of 5.5 V. With a fixed output that has a voltage of 1.2 V, this is power management at its best. Users like the load regulation of 0.2%/ATyp and line regulation of 0.04%/VTyp. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. The maximum dropout voltage is 0.165@1.5A V.
安富利:
LDO Regulator Pos 1.2V 1.5A 6-Pin5+Tab TO-263 T/R
Verical:
LDO Regulator Pos 1.2V 1.5A 6-Pin5+Tab TO-263 T/R
输出接口数 1
输出电压 1.2 V
输出电流 1.5 A
供电电流 300µA ~ 15mA
静态电流 10.0 mA
输出电容类型 Ceramic
跌落电压 0.13V @1.5A
调节输出数 1
输入电压Max 5.5 V
输入电压Min 0.98 V
输出电压Min 1.2 V
输出电流Max 1.5 A
工作温度Max 125 ℃
工作温度Min 40 ℃
精度 ±1 %
输入电压 ≤5.5 V
安装方式 Surface Mount
引脚数 6

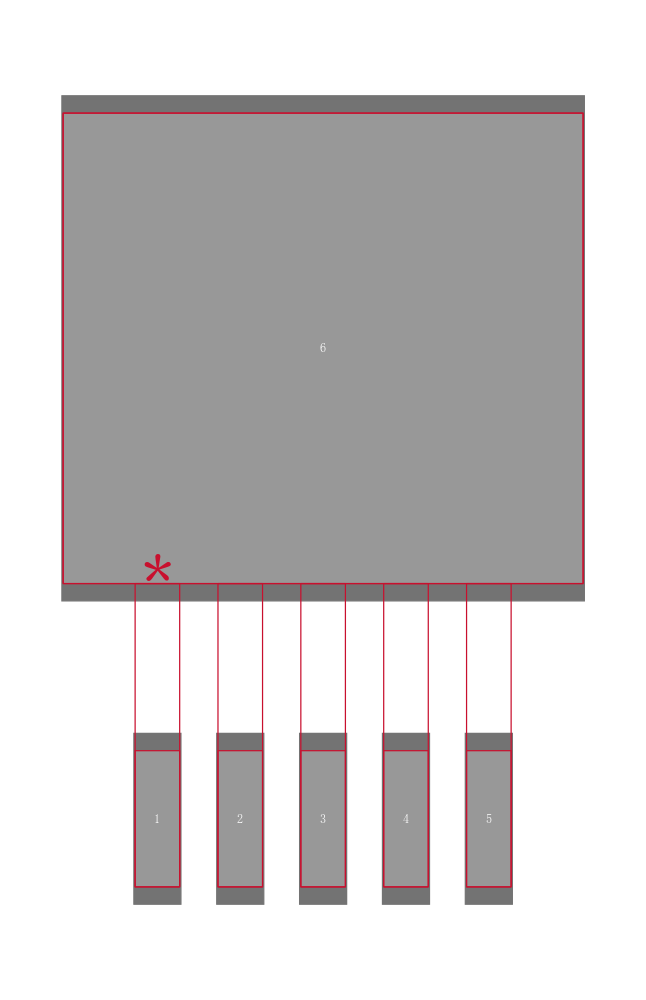

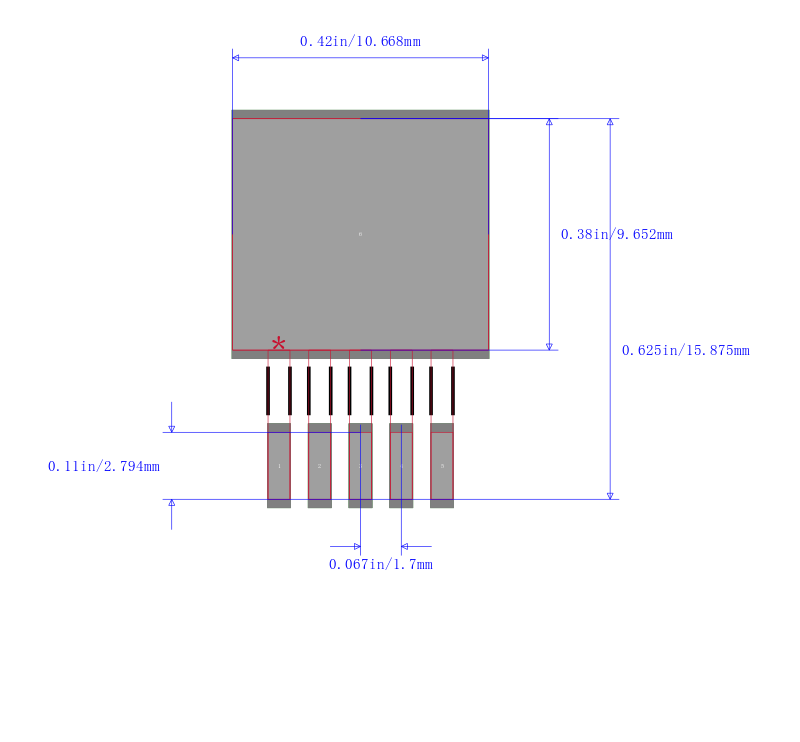

封装 TO-263-6
封装 TO-263-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP38855SX-1.2/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP38855S-1.2/NOPB 德州仪器 | 类似代替 | LP38855SX-1.2/NOPB和LP38855S-1.2/NOPB的区别 |
LP38855S-1.2 德州仪器 | 类似代替 | LP38855SX-1.2/NOPB和LP38855S-1.2的区别 |
LP38855SX-1.2 德州仪器 | 类似代替 | LP38855SX-1.2/NOPB和LP38855SX-1.2的区别 |
