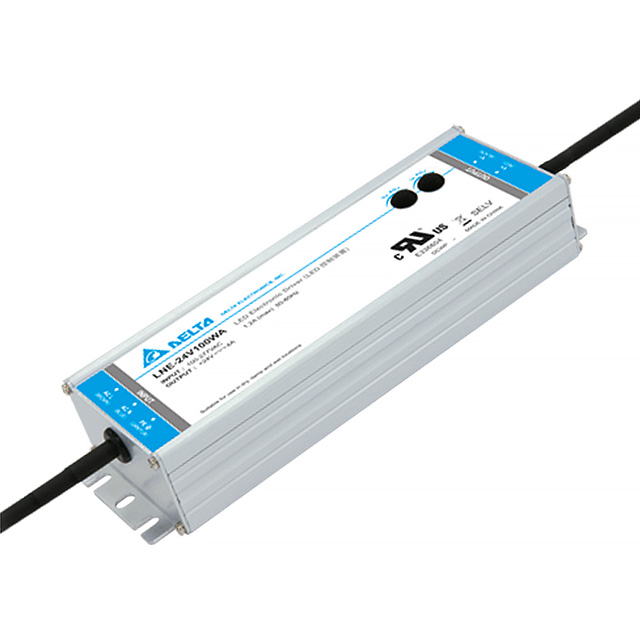

LNE-24V100WAAA概述
LED电源 LED Driver, 24VDC, 100W, IP65 with Adjustable VR, 8.66x2.68x1.53", 3-Year Warranty, UL Rated
4A 12 ~ 24V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
得捷:
LED DRIVER CC/CV AC/DC 24V 4A
贸泽:
LED电源 LED Driver, 24VDC, 100W, IP65 with Adjustable VR, 8.66x2.68x1.53", 3-Year Warranty, UL Rated
艾睿:
AC/DC LED Power Supply 100W Single
Verical:
AC/DC LED Power Supply 100W Single
LNE-24V100WAAA中文资料参数规格
技术参数
额定功率 100 W
输出接口数 1
输出电压 24 V
输出功率 100 W
隔离电压 3.85 kV
输入电压Max 305 VAC
输入电压Min 90 VAC
输出电流Max 4 A
输出功率Max 100 W
工作温度Max 70 ℃
工作温度Min -40 ℃
输入电压 90VAC ~ 305VAC
外形尺寸
长度 8.66 in
宽度 2.68 in
高度 38.8 mm
物理参数
重量 997.9 g
工作温度 -40℃ ~ 70℃
其他
产品生命周期 Active
包装方式 Carton
符合标准
RoHS标准 RoHS Compliant
含铅标准 Lead Free
海关信息
ECCN代码 EAR99
在线购买LNE-24V100WAAA
型号： LNE-24V100WAAA
制造商：
Delta Electronics
描述：LED电源 LED Driver, 24VDC, 100W, IP65 with Adjustable VR, 8.66x2.68x1.53", 3-Year Warranty, UL Rated
