精密微功耗并联型电压基准 PRECISION MICROPOWER SHUNT VOLTAGE REFERENCE
分流器 电压基准 IC ±0.2% SOT-23-3
得捷:
IC VREF SHUNT 0.2% SOT23-3
立创商城:
并联 15mA
德州仪器TI:
Fixed voltage, 45-µA, precision micropower shunt voltage reference
贸泽:
参考电压 3-V Precision Mcrpwr Shunt
艾睿:
Even in the event of large power supply variations, this LM4040B30IDBZT voltage reference power management device from Texas Instruments can produce and maintain a precise DC voltage. With an output that has a voltage of 3 V, this is power management at its best. It has an initial accuracy of 0.2%. A load regulation of 6mV is necessary for providing a constant voltage level at your output. This voltage reference circuit supports shunt topology. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It runs with a maximum temperature coefficient of 20ppm/°CTyp. This voltage reference circuit has an operating temperature range of -40 °C to 85 °C.
安富利:
V-Ref Precision 3V 15mA 3-Pin SOT-23 T/R
Chip1Stop:
V-Ref Precision 3V 15mA 3-Pin SOT-23 T/R
Verical:
V-Ref Precision 3V 15mA Automotive 3-Pin SOT-23 T/R
容差 ±0.2 %
输出电压 3 V
输出电流 15 mA
通道数 1
输出电压Max 3 V
输出电压Min 3 V
输出电流Max 15 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±0.2 %
安装方式 Surface Mount
引脚数 3

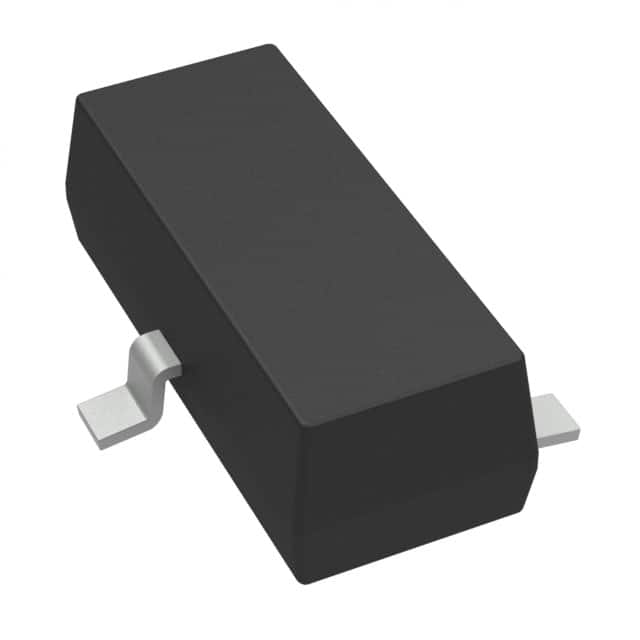

封装 SOT-23-3
长度 2.92 mm
宽度 1.3 mm
高度 1 mm
封装 SOT-23-3
工作温度 -40℃ ~ 85℃ TA
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM4040B30IDBZT TI 德州仪器 | 当前型号 | 当前型号 |
LM4040B30IDBZR 德州仪器 | 完全替代 | LM4040B30IDBZT和LM4040B30IDBZR的区别 |
LM4040C30IDBZR 德州仪器 | 类似代替 | LM4040B30IDBZT和LM4040C30IDBZR的区别 |
LM4040A30IDBZT 德州仪器 | 类似代替 | LM4040B30IDBZT和LM4040A30IDBZT的区别 |
