LDO Regulator Pos 1.22V to 20V 0.15A Automotive 8Pin MSOP T/R
This LDO linear regulator from is used to manipulate the voltage level of your circuit. Its typical dropout voltage at current is 0.09@1mA|0.15@10mA|0.21@50mA|0.27@150mA V. This voltage regulation device"s single output can produce a current up to 0.15 A. The best way to provide power to your application is by using this, which needs a voltage of at least 1.8 V and no higher than 20 V. With an adjustable output that has a voltage of 1.22 to 20 V, this is power management at its best. Using a load regulation of 6mV and line regulation of 5mV is needed for a programmable DC power supply. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive. The maximum dropout voltage is 0.15@1mA|0.25@10mA|0.27@50A|0.33@150mA V.
输出接口数 1
输入电压DC 20.0V max
输出电压 1.22V ~ 20V
输出电流 150 mA
跌落电压 0.09V @1mA,0.15V @10mA,0.21V @50mA,0.27V @150mA
输入电压Max 20 V
输入电压Min 1.8 V
输出电流Max 0.15 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 1.8V ~ 20V
安装方式 Surface Mount

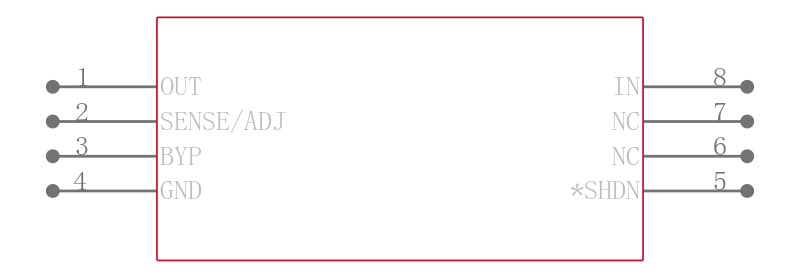

引脚数 8
封装 MSOP-8
高度 0.86 mm
封装 MSOP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT1762EMS8#TRPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1762EMS8#PBF 凌力尔特 | 完全替代 | LT1762EMS8#TRPBF和LT1762EMS8#PBF的区别 |
LT1762EMS8 凌力尔特 | 完全替代 | LT1762EMS8#TRPBF和LT1762EMS8的区别 |
LT1762EMS8#TR 凌力尔特 | 完全替代 | LT1762EMS8#TRPBF和LT1762EMS8#TR的区别 |
