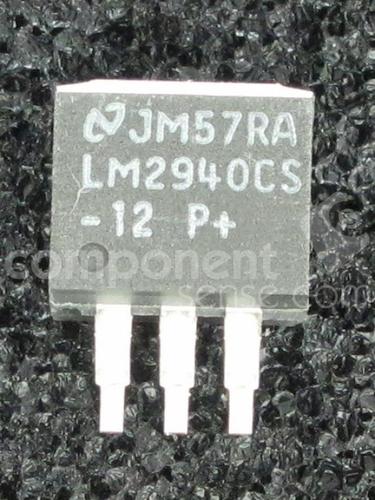

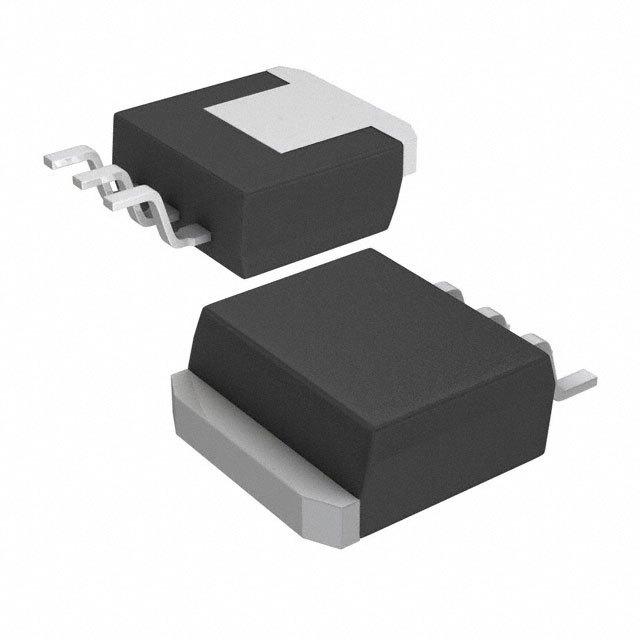

LM2940CS-12

LM2940 -N / LM2940C 1A低压降稳压器 LM2940-N/LM2940C 1A Low Dropout Regulator

Stable power is ideal for better processing this LDO linear regulator developed by Texas Instruments will help do so. Its typical dropout voltage at current is 0.11@100mA|0.5@1A V. This voltage regulation device"s single output can produce a current up to 1Min A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 13.6 V that does not exceed 26 V. With a fixed output that has a voltage of 12 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 120mV and line regulation of 120mV. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. The maximum dropout voltage is 0.8@1A|0.15@100mA V. Its polarity is positive. This voltage regulation device has an operating temperature range of 0 °C to 125 °C.
