具有可编程延迟和 1% 复位阈值精度的低电平有效复位 IC 5-SOT-23 -40 to 85
This voltage monitor voltage monitor IC from Texas Instruments makes protecting components in your circuit easy. This device has a maximum power dissipation of 300 mW. Its maximum power dissipation is 300 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device has a minimum operating supply voltage of 0.5 V and a maximum of 5.5 V. This voltage supervisor IC has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a typical reset threshold voltage of 4.63 V, with a minimum of 4.5837 V and a maximum of 4.6763 V.
电源电压DC 500mV min
额定电压DC 5.00 V
供电电流 30.0 µA
耗散功率 0.3 W
静态电流 16.0 µA
阈值电压 4.63 V
复位电压Min 4.5837 V
复位电压Max 4.6763 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 300 mW
电源电压Max 5.5 V
安装方式 Surface Mount
引脚数 5

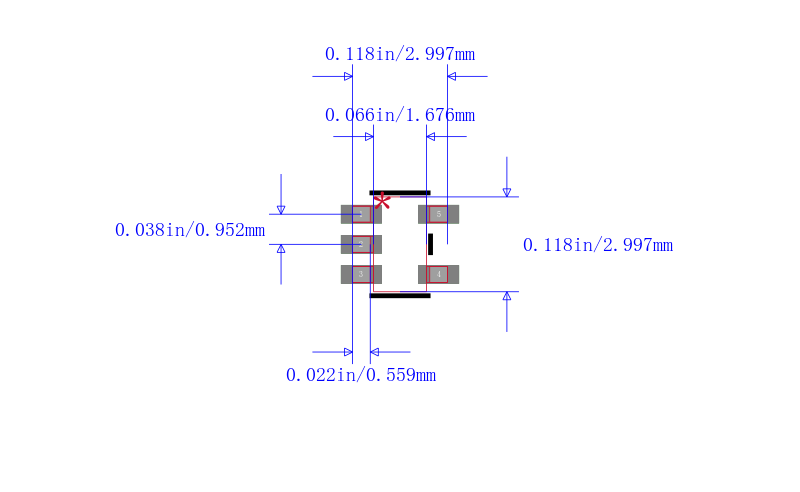

封装 SOT-23-5
封装 SOT-23-5
工作温度 -40℃ ~ 85℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LP3470IM5-4.63 TI 德州仪器 | 当前型号 | 当前型号 |
LP3470M5-4.63 德州仪器 | 完全替代 | LP3470IM5-4.63和LP3470M5-4.63的区别 |
LP3470IM5-4.63/NOPB 德州仪器 | 类似代替 | LP3470IM5-4.63和LP3470IM5-4.63/NOPB的区别 |
LP3470M5-4.63/NOPB 德州仪器 | 类似代替 | LP3470IM5-4.63和LP3470M5-4.63/NOPB的区别 |
