TEXAS INSTRUMENTS LP2996M 稳压器, 固定LDO, 2.2V至5.5V输入, 1.359V/1.5A输出, SOIC-8
DDR 端接器 PMIC 8-SOIC
得捷:
IC DDR TERMINATION REG 8SOIC
e络盟:
稳压器, 固定LDO, 2.2V至5.5V输入, 1.359V/1.5A输出, SOIC-8
艾睿:
This LDO LP2996M linear regulator from Texas Instruments is used to manipulate the voltage level of your circuit. This voltage regulation device&s;s single output can produce a current up to 1.5 A. It only needs a voltage of at least 2.2 V while not exceeding 5.5 V to effectively power your circuit. With a fixed output that has a voltage of 1.159|1.259|1.359 V, this is power management at its best. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This voltage regulation device has an operating temperature range of 0 °C to 125 °C. Its polarity is positive.
Chip1Stop:
LDO Regulator Pos 1.159V1.259V1.359V 1.5A 8-Pin SOIC Tube
Newark:
IC, REG DDR TERMINATION, SMD, SO-8
罗切斯特:
LP2996-N 1.5A DDR termination regulator with shutdown pin for DDR2
Win Source:
DDR Termination Regulator
输出接口数 1
输出电压 1.359 V
输出电流 1.5 A
供电电流 320 µA
针脚数 8
静态电流 320 µA
输入电压Max 5.5 V
输入电压Min 2.2 V
工作温度Max 125 ℃
工作温度Min 0 ℃
电源电压 2.2V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.2 V
安装方式 Surface Mount

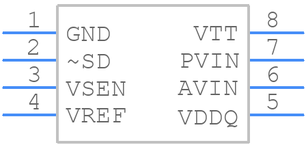

引脚数 8

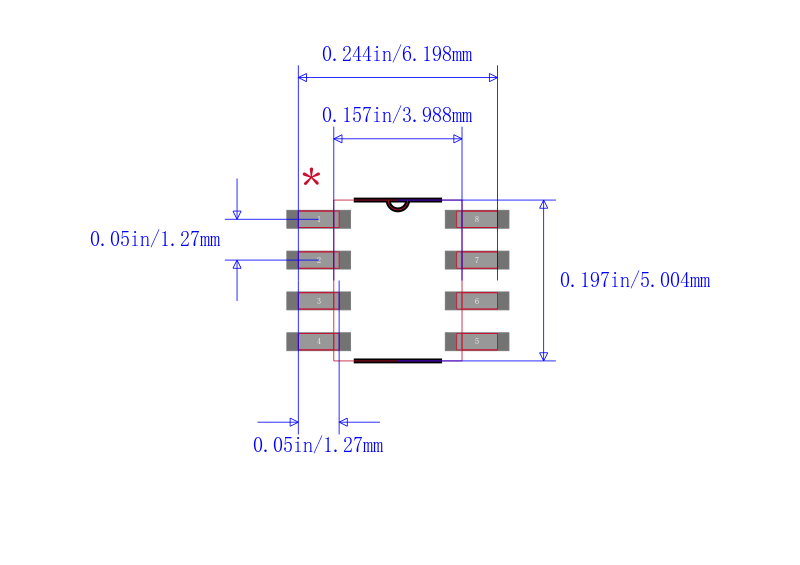

封装 SOIC-8
高度 1.5 mm
封装 SOIC-8
工作温度 0℃ ~ 125℃
产品生命周期 Active
包装方式 Each
制造应用 DDR 端接器
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP2996M TI 德州仪器 | 当前型号 | 当前型号 |
LP2996M/NOPB 德州仪器 | 完全替代 | LP2996M和LP2996M/NOPB的区别 |
LP2994MX/NOPB 德州仪器 | 完全替代 | LP2996M和LP2994MX/NOPB的区别 |
LP2994M/NOPB 德州仪器 | 完全替代 | LP2996M和LP2994M/NOPB的区别 |
