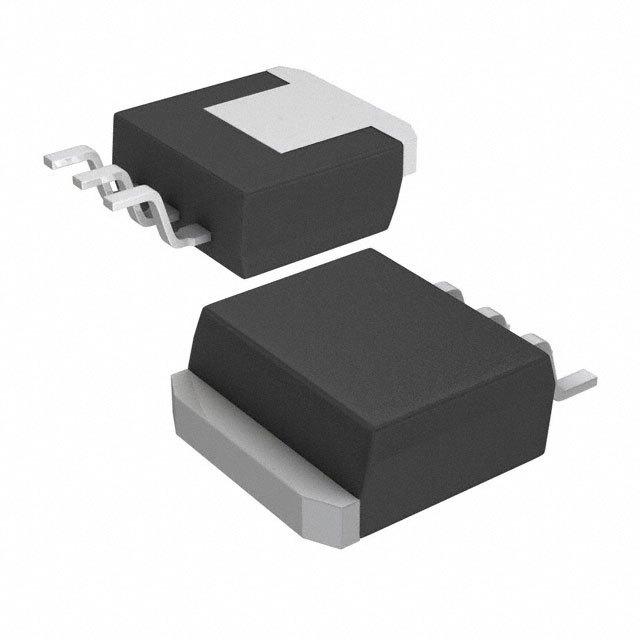

LMS1587ISX-3.3/NOPB 编带
PMIC - 稳压器 - 线性 正 固定 1 输出 3A DDPAK/TO-263-3
立创商城:
正 Vin=13V Vout=3.3V 3A 72dB@120Hz
得捷:
IC REG LIN 3.3V 3A DDPAK/TO263-3
德州仪器TI:
3-A, 13-V, linear voltage regulator
艾睿:
This LDO LMS1587ISX-3.3/NOPB linear regulator from Texas Instruments gives you control over the voltage levels of your circuit. Its typical dropout voltage at current is 1.15@3A V. This voltage regulation device&s;s single output can produce a current up to 3 A. Using the part will provide the power your application needs by requiring a voltage only of 2.4|2.5 V and not exceeding a voltage of 13 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. A load regulation of 0.3% and line regulation of 0.005%Typ is necessary for providing a constant voltage level at your output. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive. The maximum dropout voltage is 1.3@3A V.
安富利:
LDO Regulator Pos 3.3V 3A 4-Pin3+Tab TO-263 T/R
Chip1Stop:
LDO Regulator Pos 3.3V 3A 4-Pin3+Tab TO-263 T/R
Verical:
LDO Regulator Pos 3.3V 3A 4-Pin3+Tab TO-263 T/R
DeviceMart:
IC REG LDO 3.3V 3A TO263
输出接口数 1
输出电压 3.3 V
输出电流 3 A
静态电流 7.00 mA
输出电容类型 Ceramic
跌落电压 1.15V @3A
调节输出数 1
输入电压Max 13 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 ≤13 V
安装方式 Surface Mount
引脚数 4
封装 TO-263-4
高度 4.83 mm
封装 TO-263-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LMS1587ISX-3.3/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LMS1587ISX-3.3 德州仪器 | 完全替代 | LMS1587ISX-3.3/NOPB和LMS1587ISX-3.3的区别 |
LM1085IS-3.3/NOPB 德州仪器 | 类似代替 | LMS1587ISX-3.3/NOPB和LM1085IS-3.3/NOPB的区别 |
LM1085ISX-3.3/NOPB 德州仪器 | 类似代替 | LMS1587ISX-3.3/NOPB和LM1085ISX-3.3/NOPB的区别 |
