低压差稳压器 3.3 - Micropower Low Dropout Regulators with Shutdown
Say goodbye to unstable voltages with this LDO linear regulator from . Its typical dropout voltage at current is 0.13@1mA|0.42@150mA|0.3@50mA|0.37@100mA V. This voltage regulation device"s single output can produce a current up to 0.15 A. It only needs a voltage of at least -30 V while not exceeding 30 V to effectively power your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of -25mV and line regulation of 10mV. The maximum dropout voltage is 0.16@1mA|0.35@50mA|0.45@100mA|0.55@150mA V. This voltage regulation device has an operating temperature range of 0 °C to 125 °C. Its polarity is positive.
输出接口数 1
输入电压DC 20.0V max
输出电压 3.3 V
输出电流 150 mA
供电电流 50µA ~ 14mA
跌落电压 0.13V @1mA,0.37V @100mA,0.3V @50mA,0.42V @150mA
输入电压Max 30 V
输入电压Min 4.17 V
输出电压Min 3.3 V
输出电流Max 0.15 A
工作温度Max 125 ℃
工作温度Min 0 ℃
输入电压 4.17V ~ 30V
安装方式 Through Hole
引脚数 3

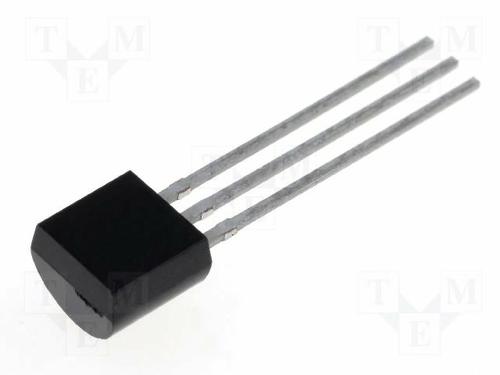

封装 TO-226-3
高度 3.55 mm
封装 TO-226-3
工作温度 0℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT1121CZ-3.3#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1121CZ-3.3 凌力尔特 | 完全替代 | LT1121CZ-3.3#PBF和LT1121CZ-3.3的区别 |
LT1121IZ-3.3 凌力尔特 | 完全替代 | LT1121CZ-3.3#PBF和LT1121IZ-3.3的区别 |
LT1121CZ-3.3#TRPBF 凌力尔特 | 完全替代 | LT1121CZ-3.3#PBF和LT1121CZ-3.3#TRPBF的区别 |
