低压差稳压器 5V 150mA LW DROP VLT REGULATOR
Description
L4995 is a family of monolithic integrated 5 V voltage regulators with a low drop voltage at currents of up to 500 mA, available in both 12 and 24 pin packages.
Features
■ Operating DC supply voltage range 5.6V to 31V
■ Low dropout voltage
■ Low quiescent current consumption
■ Reset circuit sensing of output voltage down to 1V
■ Programmable reset pulse delay with external capacitor
■ Programmable watchdoga timer with external capacitor
■ Thermal shutdown and short circuit protection
■ Wide temperature range Tj = -40°C to 150°C
■ Enablea input for enabling/disabling the voltage regulator
输出接口数 1
输出电压 5 V
输出电流 500 mA
跌落电压 0.27V @400mA
输入电压Max 40 V
输出电流Max 0.5 A
工作温度Max 150 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 5.6V ~ 31V
安装方式 Surface Mount
引脚数 24

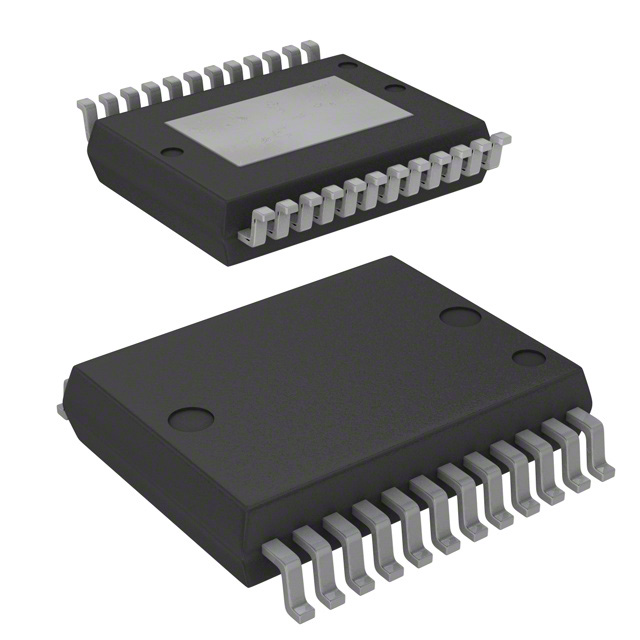

封装 PowerSSO-24
长度 10.5 mm
宽度 7.6 mm
高度 2.4 mm
封装 PowerSSO-24
工作温度 -40℃ ~ 150℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
L4995KTR ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
