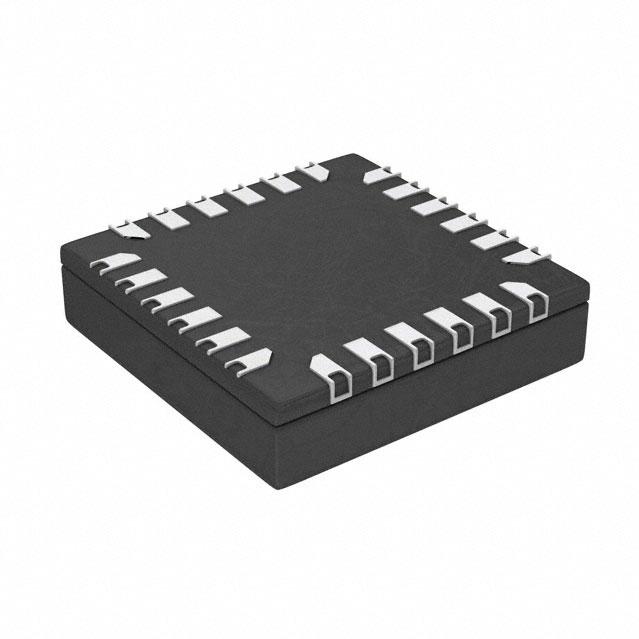

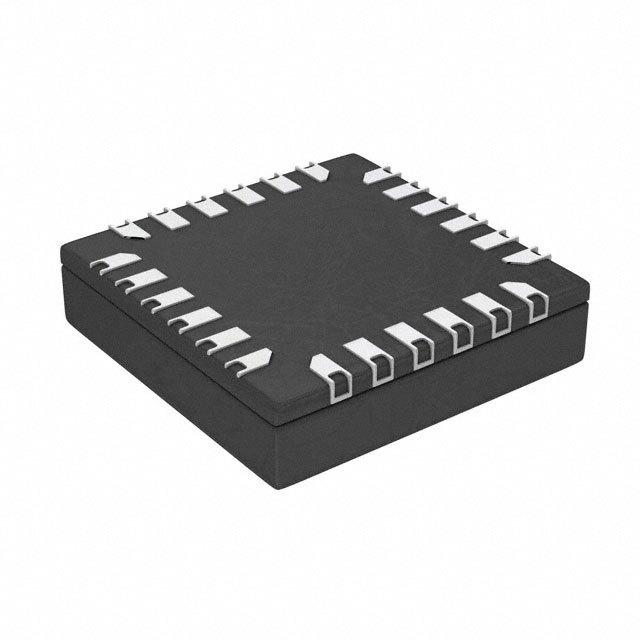

LB11620GP-TE-L-H

Motor / Motion / Ignition Controllers & Drivers FAN MOTOR DRIVER

The LB11620GP is a direct PWM drive pre-driver IC that is optimal for three-phase power brushless motors. A motor driver circuit with the desired output capability voltage and current can be implemented by adding discrete transistors or other power devices to the outputs of this IC. Since the LB11620GP is provided in a miniature package, it is also appropriate for use with miniature motors as well.

Features

---

 |

.

Three-phase bipolar drive

.

Direct PWM drive input of either a control voltage or a variable-duty PWM signal

.

Built-in forward/reverse switching circuit

.

5V regulator output VREG pin

.

Built-in current limiter circuit 0.25V typical reference voltage

.

Built-in under voltage protection circuit

.

Built-in automatic recovery type constraint protection circuit ON: OFF=1: 18 with protection operating state discrimination output RD pin

.

Hall signal pulse outputs
