具有电源正常指示和使能功能的 500mA、16V、低压降稳压器 8-VSSOP -40 to 125
PMIC - 稳压器 - 线性 正 固定 1 输出 500mA 8-VSSOP
得捷:
IC REG LINEAR 5V 500MA 8VSSOP
立创商城:
LP2989AIMMX-5.0/NOPB
德州仪器TI:
500-mA, 16-V, low-dropout voltage regulator with power good & enable
贸泽:
LDO Voltage Regulators Micropower/Low Noise, 500 mA Ultra Low-Dropout Regulator 8-VSSOP -40 to 125
艾睿:
Stable voltages are always needed for sensitive systems implement this LDO LP2989AIMMX-5.0/NOPB linear regulator from Texas Instruments. It has an overall accuracy of ±0.75 %. Its typical dropout voltage at current is 0.001@0.1mA|0.15@200mA|0.31@500mA V. This voltage regulation device&s;s single output can produce a current up to 0.5 A. With a small input voltage of 2.1 V and a max of 16 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 5 V, this is power management at its best. Using a load regulation of 0.4%Typ and line regulation of 0.014%/V is needed for a programmable DC power supply. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive. The maximum dropout voltage is 0.003@0.1mA|0.2@200mA|0.425@500mA V.
安富利:
LDO Regulator Pos 5V 0.5A 8-Pin MSOP T/R
Chip1Stop:
LDO Regulator Pos 5V 0.5A 8-Pin VSSOP T/R
Verical:
LDO Regulator Pos 5V 0.5A 8-Pin VSSOP T/R
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 5V 500mA 8-VSSOP
输出接口数 1
输出电压 5 V
输出电流 500 mA
静态电流 0.11 mA
输出电容类型 Ceramic
跌落电压 310 mV
调节输出数 1
输入电压Max 16 V
输入电压Min 2.1 V
输出电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min 40 ℃
精度 ±0.75 %
输入电压 ≤16 V
安装方式 Surface Mount
引脚数 8

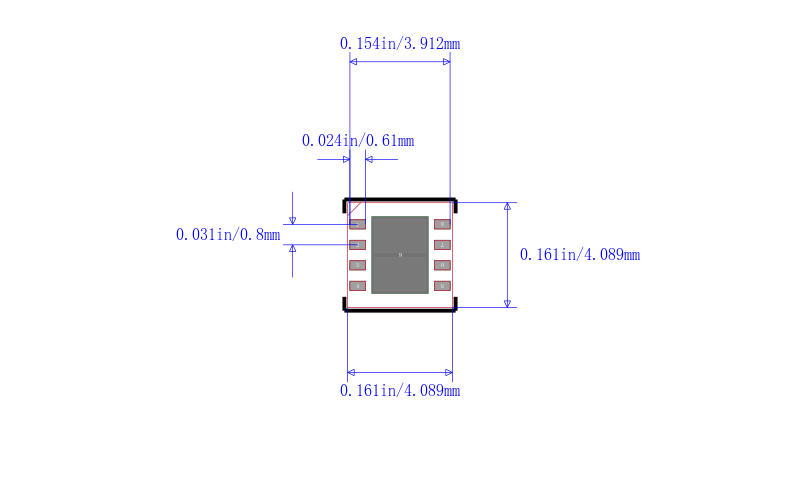

封装 VSSOP-8
封装 VSSOP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP2989AIMMX-5.0/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP2989AIMM-5.0/NOPB 德州仪器 | 类似代替 | LP2989AIMMX-5.0/NOPB和LP2989AIMM-5.0/NOPB的区别 |
LP2989AIMM-5.0 德州仪器 | 类似代替 | LP2989AIMMX-5.0/NOPB和LP2989AIMM-5.0的区别 |
LP2989AIMMX-5.0 德州仪器 | 类似代替 | LP2989AIMMX-5.0/NOPB和LP2989AIMMX-5.0的区别 |
